T10-200 - SymCom On-Delay Timer 230V Adjustable Restart Delay 0 1-10 Min
T10-200 - SymCom
T10-200

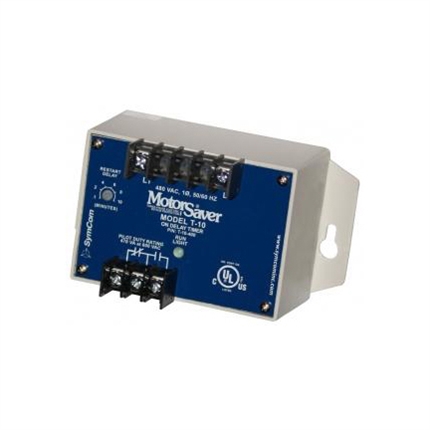

This is a family photo and may not be an accurate representation of the product.

Price: $175.08
Manufacturer SKU: T10200
(Minimum order):  10


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: T10-200
Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

T10-200 - SymCom On-Delay Timer 230V Adjustable Restart Delay 0 1-10 Min

The Model T-10-(xxx) Family
The on-delay timer is a solid-state electronic device that provides accurate and reliable timing for control circuits up to 460VAC. The T-10 features a user-selectable time delay from 6 seconds to 10 minutes (0.5 to 12 seconds on the T10S-400 model) and SPDT output contacts. When power is applied to the T-10, it immediately begins its timing cycle. During this time, the indicator LED alternates between red and green and the output contacts remain inactive. When the timing cycle is complete, the indicator LED turns solid green and the output contacts are activated. The output contacts will remain activated until power is removed from the T-10.

The SPDT contact ratings are 480V @ 240VAC on the 115V and 230V models and 470VA @ 600VAC on the 460V model.

Features:

  • Status LED
  • 600V control relay on 460V models
