T2D120A15M - SSAC Timer HVAC Lockout 120/230VAC 1A FXD 5m 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > T2D Series >

T2D120A15M

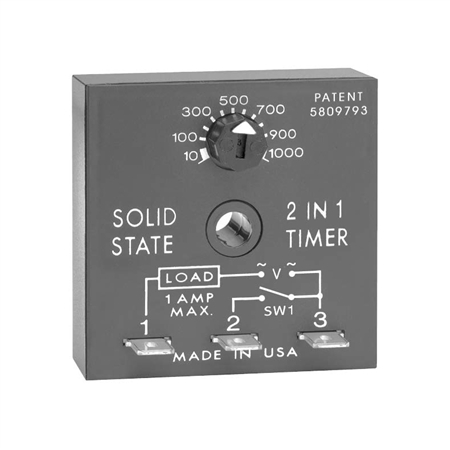

This is a family photo and may not be an accurate representation of the product.

Price: $44.48

Manufacturer SKU: T2D120A15M
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: T2D120A15M

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

T2D120A15M - SSAC Timer HVAC Lockout 120/230VAC 1A FXD 5m 2x2

The T2D Series Family

The T2D Series provides protection against short cycling of compressors and other motors. At the end of each operation, a lockout delay prevents restarting the compressor or motor until the delay is completed. 24VAC models can be used with thermostats that include a cooling anticipator resistor. It can be connected in series with the load for delay-on-make operation.

Operation (Lockout with Random Start):
Connection #1: Upon application of input voltage, a random start time delay begins. At the end of this time delay, the output is energized. Lockout Delay: Input voltage must be applied prior to and during timing. When the thermostat or initiate switch opens, the output de-energizes and the lockout time delay begins. At the end of the lockout delay, the output is energized allowing the load to immediately energize when the initiate switch or thermostat closes.
Connection #2: Upon application of input voltage and closure of initiate switch, the time delay begins. At the end of the time delay, the output is energized and remains energized until power is removed.
Reset: Removing power resets the output and the time delay.

Features:

Lockout delay prevents rapid recycling of compressor

Random start delay helps prevent low voltage starting

Delay-on-make timer optional two terminal series connection

Totally solid-state 1A output

24VAC to 230VAC in 2 ranges

Auxiliary Products:

Female quick connect: P/N: P1015-64 (AWG 14/16)

Mounting bracket: P/N: P1023-6

Quick connect to screw adaptor: P/N: P1015-18

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20
