TAC1412 - SSAC Timer HVAC Delay-on-Make 120VAC .5A FXD 2s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TAC1 Series >

TAC1412

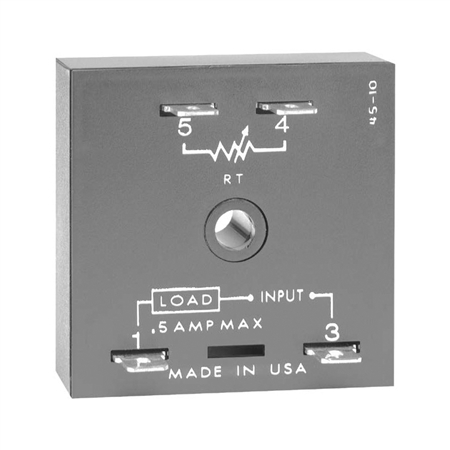

This is a family photo and may not be an accurate representation of the product.

Price: $44.76

Returnable: NOT RETURNABLE
Manufacturer SKU: TAC1412
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TAC1412

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TAC1412 - SSAC Timer HVAC Delay-on-Make 120VAC .5A FXD 2s 2x2

The TAC1 Series Family

The TAC1 Series was designed to delay the operation of a compressor relay. It eliminates the possibility of relay chatter due to half-wave failure of the output. It connects in series with the load relay coil and provides a delay-on-make time delay each time input voltage is applied. It can be used for random start, anti-short cycling, sequencing, and many other applications. It is an excellent choice for all air conditioning and refrigeration equipment.

Operation (Delay-on-Make):
Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.

Features:

UL approved for air conditioning & refrigeration equipment

Fixed or adjustable delays from 0.05 - 600s

24 to 230VAC

Fail-safe design eliminates contactor chatter problems

±2% repeat accuracy

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-XX

P/N: P1004-XX-X

Female quick connect: P/N: P1015-64 (AWG 14/16)

Mounting bracket: P/N: P1023-6

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Plug-on adjustment module: P/N: VTP(X)(X)

Download the The SSAC Product Line catalog in *.pdf format
Download the The TAC1 Series Datasheet datasheet in *.pdf format
