TCSA20 - SSAC Ac Current Transducer 0 20A 4 20mA 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Current Sensors & Monitors > TCSA Series >

TCSA20

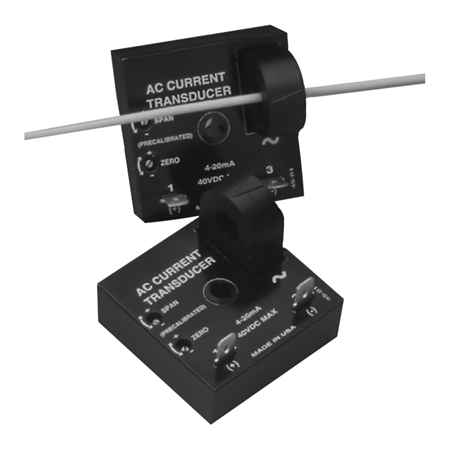

This is a family photo and may not be an accurate representation of the product.

Price: $113.44

Manufacturer SKU: TCSA20

Availability: Usually Ships in 3 to 5 Days
Part Number: TCSA20

Qty:

Description

TCSA20 - SSAC Ac Current Transducer 0 20A 4 20mA 2x2

The TCSA Series Family

The TCSA Series is a loop-powered, linear output current transducer that provides an output that is directly proportional to the RMS AC current passing through the onboard toroid. The TCSA provides a 4 - 20mA output over a power supply range of 10 - 30VDC. Each unit is factory calibrated for monitoring in one of four ranges; 0-5, 0-10, 0-20, or 0-50A. The 0 - 5A range allows the use of external current transformers so loads up to 1200AC amps can be monitored.

Operation
The TCSA varies the effective resistance of its output in direct proportion to the current flowing in the monitored conductor. The unit is factory calibrated so that 0 amps provides a 4mA output and full span provides a 20mA output. Zero and span adjustments are provided for minor calibration adjustments in the field (if required). Using an External Current Transformer (CT)
Select a 2VA, 0 to 5A output CT, rated for the current to be monitored. Select TCSA5. Pass one of the CT's secondary wire leads through the TCSA's toroid. Connect the CT's secondary leads together.

Features:

Monitors 0 - 50A in 4 ranges
Loop powered from 10 to 30VDC
Linear output from 4 - 20mA
Zero & span adjustments
Complete isolation between sensed current & control circuit

Auxiliary Products:

Female quick connect: P/N: P1015-64 (AWG 14/16)
Mounting bracket: P/N: P1023-6
Quick connect to screw adaptor: P/N: P1015-18
DIN rail: P/N: C103PM (Al)
DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
pdf

Download the The TCSA Series Datasheet datasheet in *.pdf format
