TDB120AL - SSAC Timer Delay-on-Break 120VAC Relay 1 1023s 1s Increments 8-PIN SPDT LED

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TDB / TDBH / TDBL Series >

TDB120AL

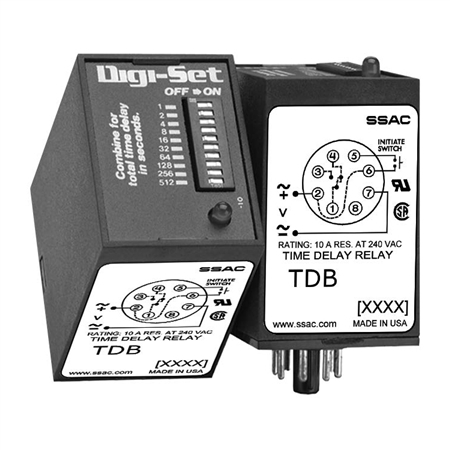

This is a family photo and may not be an accurate representation of the product.

Price: $88.44

Manufacturer SKU: TDB120AL
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TDB120AL

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TDB120AL - SSAC Timer Delay-on-Break 120VAC Relay 1 1023s 1s Increments 8-PIN SPDT LED

The TDB / TDBH / TDBL Series Family

The TDB Series combines accurate digital circuitry with isolated, 10A, DPDT or SPDT contacts in an 8 or 11-pin plug-in package. The TDB Series features DIP switch selectable time delays ranging from 0.1-10,230 seconds in three ranges. The TDB Series is the product of choice for custom control panel and OEM designers.

Operation (Delay-on-Break):
Input voltage must be applied to the input before and during timing. Upon closure of the initiate switch, the output relay is energized. The time delay begins when the initiate switch is opened (trailing edge triggered). The output remains energized during timing. At the end of the time delay, the output de-energizes. The output will energize if the initiate switch is closed when input voltage is applied.
Reset: Reclosing the initiate switch during timing resets the time delay. Loss of input voltage resets the time delay and output.

Features:

Switch settable time delay

Three time ranges from 0.1s - 10,230s

±0.1% repeat accuracy

±2% setting accuracy

10A, SPDT or DPDT output contacts

LED indication

Auxiliary Products:

Panel mount kit: P/N: BZ1

Hold-down clips (sold in pairs):

P/N: PSC8 (NDS-8)

P/N: PSC11 (NDS-11)

11-pin socket: P/N: NDS-11

Octal 8-pin socket: P/N: NDS-8

Octal socket for UL listing: P/N: P1011-6

Download the The SSAC Product Line catalog in *.pdf format
Download the The TDB / TDBH / TDBL Series Datasheet datasheet in *.pdf format
