TDMH120AL - SSAC Timer Delay-on-Make 120VAC Relay 10 10230s 8-PIN LED

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TDM / TDMH / TDML Series >

TDMH120AL

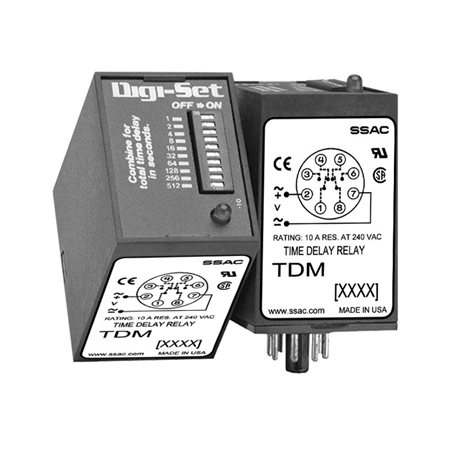

This is a family photo and may not be an accurate representation of the product.

Price: $84.14

Manufacturer SKU: TDMH120AL
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TDMH120AL

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TDMH120AL - SSAC Timer Delay-on-Make 120VAC Relay 10 10230s 8-PIN LED

The TDM / TDMH / TDML Series Family

The TDM Series is a delay-on-make timer that combines accurate digital circuitry with isolated, DPDT relay contacts in an industry standard 8-pin plug-in package. DIP switch adjustment allows precise selection of the time delay over the full time delay range. The TDM Series is the product of choice for custom control panel and OEM designers.

Operation (Delay-on-Make):
Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output relay energizes and remains energized until input voltage is removed.
Reset: Removing input voltage resets the time delay and output.

Features:

Switch settable time delay

Three time ranges from 0.1s - 10,230s

±0.1% repeat accuracy

±2% setting accuracy

10A, DPDT output contacts

LED indication

Auxiliary Products:

Panel mount kit: P/N: BZ1

8-pin socket: P/N: NDS-8

Hold-down clips (sold in pairs): P/N: PSC8 (NDS-8)

Octal socket for UL listing: P/N: P1011-6

DIN rail: P/N: C103PM (Al)

Download the The SSAC Product Line catalog in *.pdf format
Download the The TDM / TDMH / TDML Series Datasheet datasheet in *.pdf format
