TDUBH3001A - SSAC Timer Delay-on-Break 100 240VAC 1A Dip Switch 0.1 102.3m 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TDMB Series >

TDUBH3001A

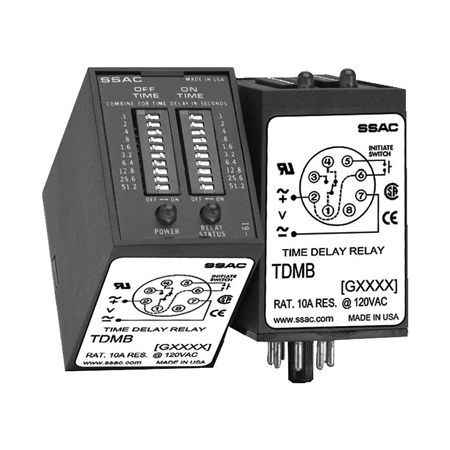

This is a family photo and may not be an accurate representation of the product.

Price: $72.88

Returnable: NOT RETURNABLE
Manufacturer SKU: TDUBH3001A
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TDUBH3001A

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TDUBH3001A - SSAC Timer Delay-on-Break 100 240VAC 1A Dip Switch 0.1 102.3m 2x2

The TDMB Series Family

The TDMB combines both delay-on-make and delay-on-break functions into one plug-in package. Selection of the time period is accomplished with dual switches, one for the on delay and the other for the off delay. SPDT or DPDT output options provide isolated, 10A switching capability.

Operation (Delay-on-Make/Delay-on-Break):
Input voltage must be applied at all times. The output relay is de-energized. Upon closure of the initiate switch, the green LED glows and the delay-on-make time delay (T1) begins. At the end of T1, the output relay energizes and the red LED glows. When the initiate switch opens, the green LED turns OFF and the delay-on-break time delay (T2) begins. At the end of T2, the output relay de-energizes and the red LED turns OFF.
Reset: Removing input voltage resets time delay and output. Opening the initiate switch during the delay-on-make delay, resets T1. Closing the initiate switch during the delay-on-break delay, resets T2.

Features:

Switch settable time delays from 0.1s - 10,230s in 3 ranges

±2% setting accuracy

±0.1% repeat accuracy

10A, SPDT or DPDT output contacts

Auxiliary Products:

Panel mount kit: P/N: BZ1

11-pin socket: P/N: NDS-11

Octal 8-pin socket: P/N: NDS-8

Hold-down clips (sold in pairs):

P/N: PSC8 (NDS-8)

P/N: PSC11 (NDS-11)
