TDUIL3001A

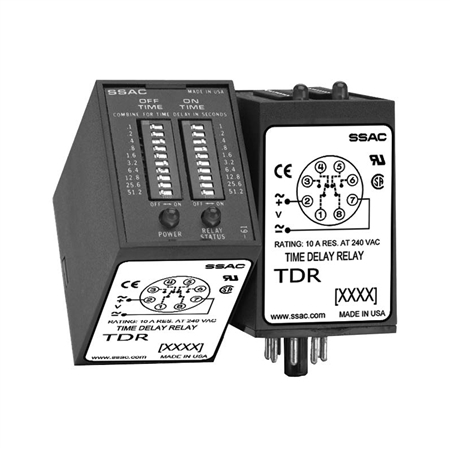

This is a family photo and may not be an accurate representation of the product.

Price: $72.88

Returnable: NOT RETURNABLE
Manufacturer SKU: TDUIL3001A
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TDUIL3001A

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TDUIL3001A - SSAC Timer Interval 100 240VAC 1A Dip Switch 0.1 102.3s 2x2

The TDR Series Family

The TDR Series of time-delay relays are comprised of digital circuitry and an isolated, 10A relay output. The on and off delays are selected by means of two, ten position binary switches, which allow the setting of the desired delay to be precise every time.

Operation (Recycling - ON Time First):
Upon application of input voltage, the green LED glows, the output relay is energized, the red LED glows, and the T1 ON time begins. At the end of the ON time, the output de-energizes, the red LED turns OFF and the T2, OFF time begins. At the end of the OFF time, the output relay energizes and the cycle repeats as long as input voltage is applied.
Reset: Removing input voltage resets the output and time delays, and returns the sequence to the first delay. Operation (Recycling - OFF Time First):
Upon application of input voltage, the green LED glows, the T1 OFF time begins, the load is OFF. At the end of the OFF time, the T2 ON time begins, the load energizes, and the red LED glows. At the end of the ON time the load de-energizes and the red LED turns OFF. The cycle repeats until input voltage is removed.
Reset: Removing input voltage resets the output and the sequence to the OFF time.

Features:

Switch settable time delays - both times adjustable

0.1s - 2.84h in 3 ranges

±0.1% repeat accuracy

±2% setting accuracy

Isolated, 10A, DPDT output contacts

Octal plug-in base connection

Auxiliary Products:

Panel mount kit: P/N: BZ1

Octal 8-pin socket: P/N: NDS-8

Hold-down clips (sold in pairs): P/N: PSC8 (NDS-8)

DIN rail: P/N: C103PM (Al)

Download the The SSAC Product Line catalog in *.pdf format
Download the The TDR Series Datasheet datasheet in *.pdf format
