TDUIL3002A - SSAC Timer Interval 12 24VDC 1A Dip Switch 0.1 102.3s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TDUI Series >

TDUIL3002A

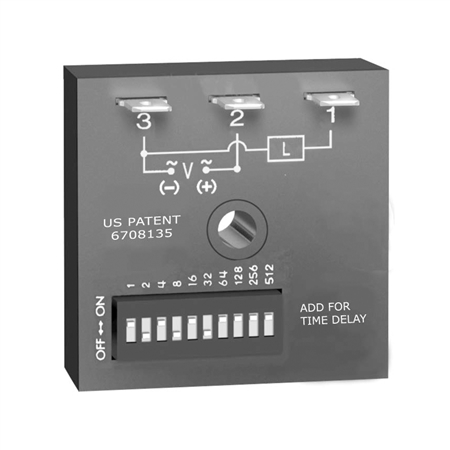

This is a family photo and may not be an accurate representation of the product.

Price: $72.88

Returnable: NOT RETURNABLE
Manufacturer SKU: TDUIL3002A
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TDUIL3002A

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TDUIL3002A - SSAC Timer Interval 12 24VDC 1A Dip Switch 0.1 102.3s 2x2

The TDUI Series Family

The TDUI Series combines digital timing circuitry with universal voltage operation. Voltages of 24 to 240VAC and 12 to 24VDC are available in three ranges. The TDUI Series offers DIP switch selectable time delays ranging from 0.1 seconds to 102.3 minutes in three ranges. Its 1A rated output, ability to operate on multiple voltages, and wide range of switch selectable time delays make the TDUI Series an excellent choice for process control systems and OEM equipment.

Operation (Interval):
Upon application of input voltage, the time delay begins. The output energizes during the time delay. At the end of the time delay, the output de-energizes and remains de-energized until input voltage is removed.
Reset: Removing input voltage resets the time delay and the output.

Features:

Switch selectable time setting

0.1s - 102.3m in 3 ranges

±0.5% repeat accuracy

±2% setting accuracy

1A, solid-state output

Encapsulated

Wide voltage ranges

Auxiliary Products:

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

P/N: P1015-14 (AWG 18/22)

Quick connect to screw adaptor: P/N: P1015-18

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20
