TDUL3001A - SSAC Timer Delay-on-Make 100 240VAC/DC 1A Dip Switch 0.1 102.3s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > KSDU / TDU Series >

TDUL3001A

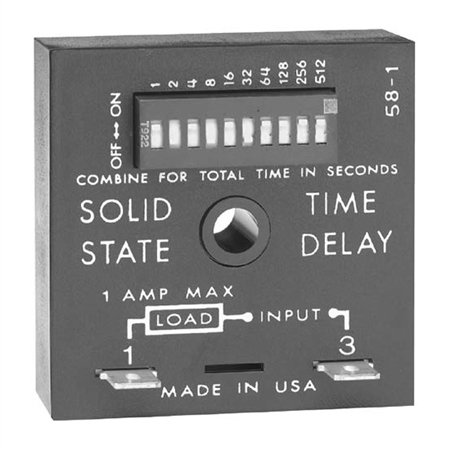

This is a family photo and may not be an accurate representation of the product.

Price: $41.39

Manufacturer SKU: TDUL3001A
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TDUL3001A

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TDUL3001A - SSAC Timer Delay-on-Make 100 240VAC/DC 1A Dip Switch 0.1 102.3s 2x2

The KSDU / TDU Series Family

The TDU and KSDU Series are encapsulated solid-state, delay-on-make timers that combine digital timing circuitry with universal voltage operation. The TDU offers DIP switch adjustment allowing accurate selection of the time delay over the full time delay range. The KSDU is factory fixed from 0.1s to 10,230s and does not include the DIP switch. These series are excellent choices for process control systems and OEM equipment.

Operation (Delay-on-Make):
Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.

Features:

2 universal voltage ranges from 24 to 240VAC/DC

Digital integrated circuitry

Switch selectable delays from 0.1s - 2.8h in 3 ranges or factory fixed

±0.5% repeat accuracy

1A steady, 10A inrush

Totally solid state & encapsulated

Auxiliary Products:

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Mounting bracket: P/N: P1023-6

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The KSDU / TDU Series Datasheet datasheet in *.pdf format
