TDUSL3000A - SSAC Timer Single Shot 24 120VAC 1A Dip Switch 0.1 102.3s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TDUS Series >

TDUSL3000A

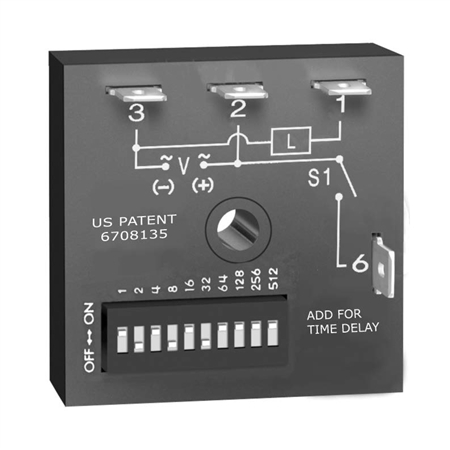

This is a family photo and may not be an accurate representation of the product.

Price: $72.88

Manufacturer SKU: TDUSL3000A
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TDUSL3000A

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TDUSL3000A - SSAC Timer Single Shot 24 120VAC 1A Dip Switch 0.1 102.3s 2x2

The TDUS Series Family

The TDUS Series combines digital timing circuitry with universal voltage operation. Voltages of 24 to 240VAC and 12 to 24VDC are available in three ranges. The TDUS Series offers DIP switch selectable time delays ranging from 0.1 seconds to 102.3 minutes in three ranges. Its 1A rated output, ability to operate on multiple voltages, and wide range of switch selectable time delays make the TDUS Series an excellent choice for process control systems and OEM equipment.

Operation (Single Shot):
Input voltage must be applied before and during timing. Upon momentary or maintained closure of the initiate switch (leading edge triggered), the output energizes for a measured interval of time. At the end of the delay, the output de-energizes. Opening or reclosing the initiate switch during timing has no affect on the time delay. The output will energize if the initiate switch is closed when input voltage is applied. Reset: Reset occurs when the time delay is complete and the initiate switch is opened. Loss of input voltage resets the time delay and output.

Features:

Switch selectable time setting

0.1s - 102.3m in 3 ranges

± 0.5% repeat accuracy

± 2% setting accuracy

1A, solid-state output

Encapsulated

Wide voltage ranges

Auxiliary Products:

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

P/N: P1015-14 (AWG 18/22)

Quick connect to screw adaptor: P/N: P1015-18

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The TDUS Series Datasheet datasheet in *.pdf format
