TH1C415 - SSAC Timer Delay-on-Make 120VAC 20A FXD 5s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TH1 Series >

TH1C415

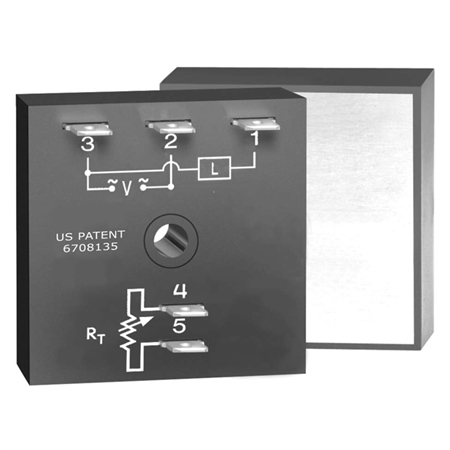

This is a family photo and may not be an accurate representation of the product.

Price: $94.52

Returnable: NOT RETURNABLE
Manufacturer SKU: TH1C415
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TH1C415

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TH1C415 - SSAC Timer Delay-on-Make 120VAC 20A FXD 5s 2x2

The TH1 Series Family

The TH1 Series is a solid-state relay and timer combined into one compact, easy-to-use control. This highly reliable device eliminates the need for a separate solid-state relay. When mounted to a metal surface, it can switch load currents up to 20A steady state, and 200A inrush.

Operation (Delay-on-Make):
Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.

Features:

High current load capacity up to 20A with 200A inrush

Solid-state switching - no contact wear or arcing

Encapsulated

Fixed or adjustable time delays from 0.1 - 600s

± 2% repeat accuracy

± 5% factory calibration

Metallized mounting surface for heat transfer

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

Download the The SSAC Product Line catalog in *.pdf format
Download the The TH1 Series Datasheet datasheet in *.pdf format
