THD3C42A0 - SSAC Timer Recycling 120VAC 20A Ext Adjustable 0.1 10s On First 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > THD3 Series >

THD3C42A0

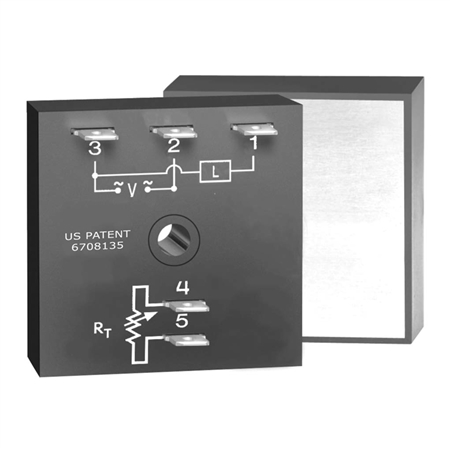

This is a family photo and may not be an accurate representation of the product.

Price: $94.38

Returnable: NOT RETURNABLE
Manufacturer SKU: THD3C42A0
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: THD3C42A0

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

THD3C42A0 - SSAC Timer Recycling 120VAC 20A Ext Adjustable 0.1 10s On First 2x2

The THD3 Series Family

The THD Series combines accurate timing circuitry with high power, solid-state switching. It can switch motors, lamps, and heaters directly without a contactor. The THD3 has equal on and off time delays. A single RT sets both time delays. You can reduce labor, component cost, and increase reliability with these small, easy-to-use, Digi-Power timers.

Operation (Recycling Flasher - ON Time First):
Upon application of input voltage, the output energizes and the T1 ON time begins. At the end of the ON time, the output de-energizes and the T2 OFF time begins. At the end of the OFF time, the output energizes and the cycle repeats as long as input voltage is applied.
Reset: Removing input voltage resets the output and time delays, and returns the sequence to T1 ON time.

Operation (Recycling Flasher - OFF Time First):
Upon application of input voltage, the T2 OFF time begins. At the end of the OFF time, the T1 ON time begins and the load energizes. At the end of T1, T2 begins and the load de-energizes. This cycle repeats until input voltage is removed.
Reset: Removing input voltage resets the output and the sequence to T2 OFF time.

Features:

High load currents up to 20A, 200A inrush

Fixed or adjustable delays from 0.1s - 1000m

±0.5% repeat accuracy

±1% factory calibration

24, 120, or 230VAC

Metallized mounting surface for heat transfer

Totally solid state & encapsulated

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7
