THS422C - SSAC Timer Single Shot 120VAC 20A Ext Adjustable 0.5 60s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > THC / THS Series >

THS422C

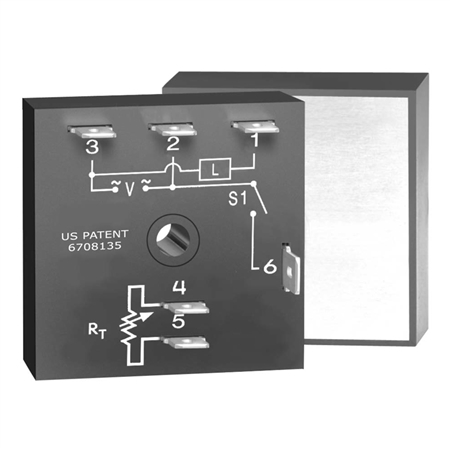

This is a family photo and may not be an accurate representation of the product.

Price: $97.32

Returnable: NOT RETURNABLE
Manufacturer SKU: THS422C
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: THS422C

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

THS422C - SSAC Timer Single Shot 120VAC 20A Ext Adjustable 0.5 60s 2x2

The THC / THS Series Family

The TH series is a solid-state relay and timer combined into one compact, easy-to-use control. When mounted to a metal surface, the TH Series may be used to directly control lamp or heater loads of up to 20A steady, 200A inrush. Its single shot function can perform dispensing and pulse shaping operations. The initiate switch can be a momentary or maintained type of switch. Time delays can be selected from 0.1 - 600 seconds in 4 ranges. The THC Series is used for coin vending applications where fast initiate response is required.

Operation (Single Shot):
Input voltage must be applied before and during timing. Upon momentary or maintained closure of the initiate switch (leading edge triggered), the output energizes for a measured interval of time. At the end of the delay, the output de-energizes. Opening or reclosing the initiate switch during timing has no affect on the time delay. The output will energize if the initiate switch is closed when input voltage is applied.
Reset: Reset occurs when the time delay is complete and the initiate switch opens. Loss of input voltage resets the time delay and output.

Features:

High load current capacity, up to 20A, 200A inrush

Momentary or maintained initiate switch

±2% repeat accuracy

±5% factory calibration

Fixed or adjustable 0.1 - 600s in 4 ranges

Metallized mounting surface for heat transfer

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

Download the The SSAC Product Line catalog in *.pdf format
Download the The THC / THS Series Datasheet datasheet in *.pdf format
