TL120A5T - SSAC Timer HVAC Delay-on-Make/Lockout 120VAC 0.5A FXD 1S/5m 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TL Series >

TL120A5T

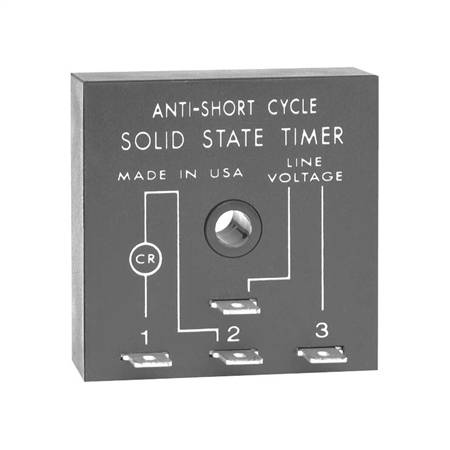

This is a family photo and may not be an accurate representation of the product.

Price: $43.71

Returnable: NOT RETURNABLE
Manufacturer SKU: TL120A5T
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TL120A5T

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TL120A5T - SSAC Timer HVAC Delay-on-Make/Lockout 120VAC 0.5A FXD 1S/5m 2x2

The TL Series Family

The TL Series provides protection against short cycling of a compressor. At the end of each operation, or whenever power is lost, a lockout delay is initiated. This lockout delay prevents restarting of the compressor until the head pressure has equalized. Compressor relay chatter due to thermostat bounce is eliminated by use of optional one second delay-on-make. The TL Series should not be used with cooling anticipator resistors or solid-state switches. (See the TA Series).

Operation (Lockout):
Lockout: On initial closure of S1, the compressor relay energizes immediately (or after an optional 1 s delay). When the S1 opens or input voltage is interrupted, the output opens and remains open for the lockout time delay. During this lockout time delay period, the compressor relay cannot be re-energized.
Reset: The lockout time delay cannot be reset. After the time delay is completed, the unit automatically resets.

Features:

Ideal for HVAC/R applications

Lockout delay prevents short cycling of a compressor

Optional 1s delay-on-make prevents contactor chatter

Totally solid state and encapsulated

24VAC to 230VAC in 3 ranges

Eliminates nuisance service calls due to blown fuse or tripped breakers

Auxiliary Products:

Female quick connect: P/N: P1015-64 (AWG 14/16)

Mounting bracket: P/N: P1023-6

Quick connect to screw adaptor: P/N: P1015-18

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The TL Series Datasheet datasheet in *.pdf format
