TMV8000 - SSAC Timer Delay-on-Make 24 240VAC/DC 1A Adjustable 0.1 8m 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TMV8000 / TSU2000 Series >

TMV8000

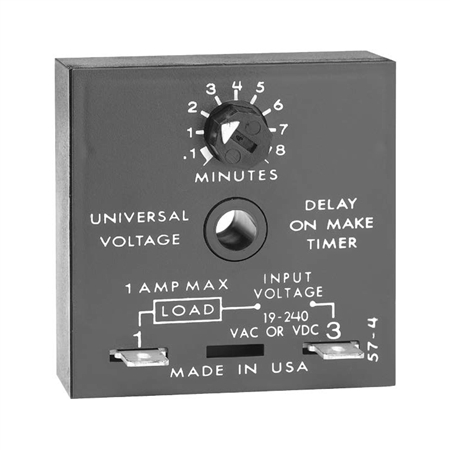

This is a family photo and may not be an accurate representation of the product.

Price: $34.23

Manufacturer SKU: TMV8000
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TMV8000

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TMV8000 - SSAC Timer Delay-on-Make 24 240VAC/DC 1A Adjustable 0.1 8m 2x2

The TMV8000 / TSU2000 Series Family

The TMV and TSU Series are universal voltage delay-on-make timers. Two models cover all the popular voltages and time delays. Available with knob or external adjust time delay. Its simple two terminals can easily be connected in series with a relay coil, contactor coil, solenoid, lamps, small motor, etc., to delay their energization, prevent short cycling or to sequence on various loads.

Operation (Delay-on-Make):
Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.

Features:

Operates from 24 to 240VAC/DC

Onboard or external adjust time delays

Delays from 5s - 8m

Totally solid state & encapsulated

1A steady, 10A inrush

Two terminal series connection with load

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-12

P/N: P1004-12-X

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

Mounting bracket: P/N: P1023-6

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The TMV8000 / TSU2000 Series Datasheet datasheet in *.pdf format
