TPC-31T-E3AE - Advantech 3.5 Inch QVGA TI AM3517 600MHz 256MB with WinCE 6.0

TPC-31T-E3AE - Advantech
TPC-31T-E3AE

Alternative Views:
Price: $403.75
Manufacturer SKU: TPC-31T-E3AE



Availability: Usually Ships in 3 to 5 Days
Part Number: TPC-31T-E3AE
Qty:

Description Technical Specs

TPC-31T-E3AE - Advantech 3.5 Inch QVGA, TI AM3517 600MHz,256MB with WinCE 6.0

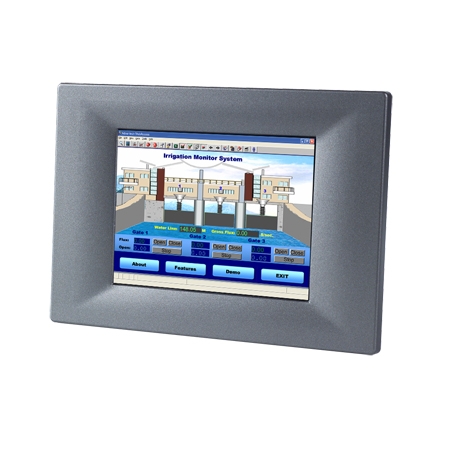

The TPC-31T/61T model is a compact platform without redundant functions, and has been designed for small-sized operator interface applications. It has a 3.5"/5.7" TFT LCD display which is a cost effective choice for a limited budget. Its RISC kernel, the TI Cortex-A8 processor consumes minimum power without sacrificing performance. The TPC-31T/61T has a 10/100Base-T Ethernet port offering solid communication ability and comes bundled with a Windows® CE OS that supports Thin-Client solutions. The built-in Windows CE OS platform lets the TPC-31T/61T become an Open HMI solution for system integration.

[WinCE] 3.5" QVGA TFT LED LCD TI Cortex-A8 Touch Panel Computer
  • TI Cortex-A8 processor on board
  • 3.5" QVGA TFT LED LCD
  • Super slim and compact design with plastic housing
  • Fanless cooling system
  • IP65 compliant front panel
  • Built-in micro SD card with Windows® CE OS
  • 1 x SD card slot
  • Automatic data flow control RS-485
  • Supports 1Mbit FRAM for data back-up
pdfDownload the TPC-31T-E3AE brochure in *.pdf format
