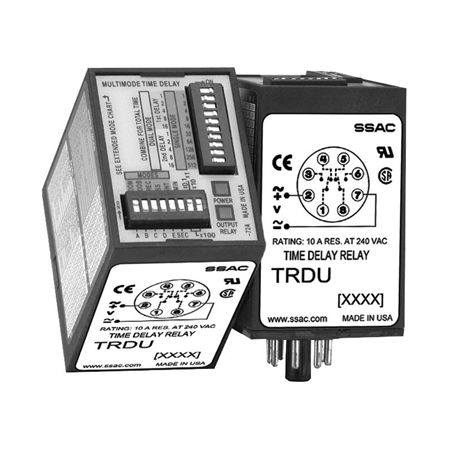

TRDU24A1 - SSAC Timer Multifunction 24VAC/DC Relay DPDT Dip Switch 8-PIN
The TRDU Series Family
The TRDU Series is a versatile universal time delay relay with 21 selectable single and dual functions. The dual functions replace up to three timers required to accomplish the same function. Both the function and the timing range are selectable with switches located on the face of the unit. Two LED's indicate input voltage and output status. This device offers full 10A isolated relay output contacts in either SPDT or DPDT. The TRDU replaces hundreds of part numbers, thereby, reducing your stock inventory requirements.
21 Functions:
Five switches are provided to set one of 10 single or
11 dual modes of operation.
- Single Functions
- Delay-on-Make
Delay-on-Break
- Recycle (ON time first, equal recycle delays)
Single Shot
- Interval
Trailing Edge Single Shot
Inverted Single Shot
Inverted Delay-on-Break
Accumulative Delay-on-Make
Retriggerable Single Shot (motion detector)
- Dual Functions
- Delay-on-Make/Delay-on-Break
- Delay-on-Make/Recycle (ON time first, equal recycle delays)
- Delay-on-Make/Interval
- Delay-on-Make/Single Shot
- Interval/Recycle (ON time first, equal recycle delays)
Delay-on-Break/Recycle (ON time first, equal recycle delays)
Single Shot/Recycle (ON time first, equal recycle delays)
- Recycle - both times adjust. (ON time first)
- Recycle - both times adjust. (OFF time first)
- Interval/Delay-on-Make
Accumulative Delay-on-Make/Interval
Features:
- Microcontroller ±0.1% repeat accuracy
- Multifunction - 21 timing functions
- Multirange - 0.1s - 1,705h in 8 ranges
- Switch selectable modes, time delay, & ranges
- AC & DC input voltages are available
- Isolated, 10A, SPDT or DPDT output contacts
Auxiliary Products:
- Panel mount kit: P/N: BZ1
- Hold-down clips (sold in pairs):
- P/N: PSC8 (NDS-8)
- P/N: PSC11 (NDS-11)
- 11-pin socket: P/N: NDS-11
- Octal 8-pin socket: P/N: NDS-8
- DIN rail: P/N: C103PM (Al)
