TRU1 - SSAC Timer Multifunction 24 240VAC 24VDC DPDT Adjustable 8-PIN

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Multifunction > TRU Series >

TRU1

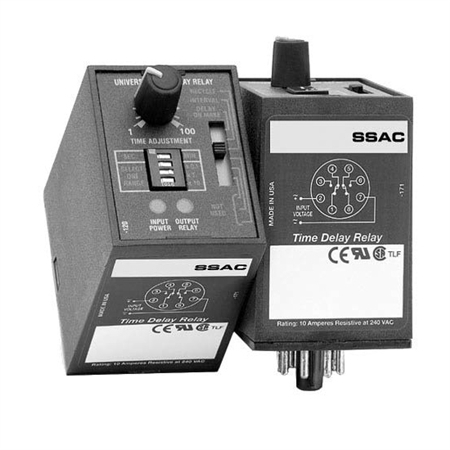

This is a family photo and may not be an accurate representation of the product.

Price: $108.47

Manufacturer SKU: TRU1
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TRU1

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TRU1 - SSAC Timer Multifunction 24 240VAC 24VDC DPDT Adjustable 8-PIN

The TRU Series Family

The TRU Series is a multifunction, knob adjustable, Universal Time Delay Relay. It includes six of the most popular timing functions selected by a slide switch. The time delay is knob adjustable and the time delay range is switch selectable. The repeat accuracy is + 0.1%. Both function and time range can be selected on the top face of the unit. In addition to multifunctioning and multiple time ranges, the TRU Series features universal input voltage; 19 to 264VAC and 19 to 30VDC and full 10A output relay. The TRU Series can directly replace up to 1000 competitive time delay relay models.

Operation
A six position slide switch selects delay-on-make, interval, single shot, recycling (ON time first, Equal Recycle Delays), delay-on-break, and retriggerable single shot. 8-pin DPDT base wiring is limited to delay-on-make, interval, and recycling functions. All six functions are available in the 8-pin SPDT and 11-pin DPDT versions.

Features:

Microcontroller ±0.1% repeat accuracy

Six timing functions are switch selectable

0.1s - 1000m in six ranges

Knob adjustable time delay

Universal input voltage 19 to 264VAC & 19 to 30VDC

10A, SPDT or DPDT output contacts

Auxiliary Products:

Panel mount kit: P/N: BZ1

Hold-down clips (sold in pairs):

P/N: PSC8 (NDS-8)

P/N: PSC11 (NDS-11)

11-pin socket: P/N: NDS-11

Octal 8-pin socket: P/N: NDS-8

Download the The SSAC Product Line catalog in *.pdf format
Download the The TRU Series Datasheet datasheet in *.pdf format
