TS12190 - SSAC Timer Delay-on-Make 24VAC 1A FXD 90s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TS1 Series >

TS12190

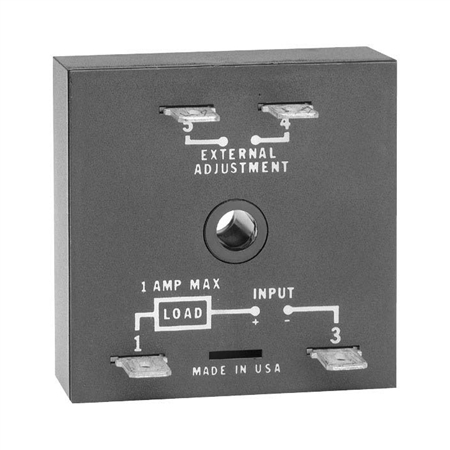

This is a family photo and may not be an accurate representation of the product.

Price: $47.50

Manufacturer SKU: TS12190
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TS12190

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TS12190 - SSAC Timer Delay-on-Make 24VAC 1A FXD 90s 2x2

The TS1 Series Family

Versa-Timer offers proven reliability and performance with years of use in OEM equipment and commercial applications. This encapsulated general use timing module is capable of controlling load currents ranging from 5mA to 1A. May be connected in series with contactors, relays, valves, solenoids, small motors, and lamps.

Operation (Delay-on-Make):
Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.

Features:

Two terminal series connection with load

5mA - 1A load currents

Totally solid state & encapsulated

±2% repeat accuracy

Fixed or adjustable delays from 0.05s - 10m in 8 ranges

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-XX

P/N: P1004-XX-X

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Mounting bracket: P/N: P1023-6

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Plug-on adjustment module: P/N: VTP(X)(X)

Download the The SSAC Product Line catalog in *.pdf format
Download the The TS1 Series Datasheet datasheet in *.pdf format
