TS24130 - SSAC Timer Interval 120VAC 1A FXD 30s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TS2 / TS6 Series >

TS24130

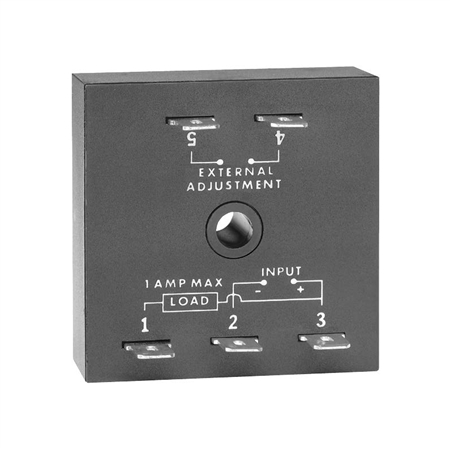

This is a family photo and may not be an accurate representation of the product.

Price: $47.50

Returnable: NOT RETURNABLE
Manufacturer SKU: TS24130
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TS24130

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TS24130 - SSAC Timer Interval 120VAC 1A FXD 30s 2x2

The TS2 / TS6 Series Family

The TS2 Series is designed for 24, 120 or 230VAC and the TS6 Series is designed for 12 or 24VDC. These series are capable of controlling load currents of up to 1A steady state, 10A inrush. Encapsulated circuitry and the reliability of a ±2% repeat accuracy make the TS2 and TS6 ideal for cost sensitive applications.

Operation (Interval):
Upon application of input voltage, the time delay begins. The output energizes during the time delay. At the end of the time delay, the output de-energizes and remains de-energized until input voltage is removed.
Reset: Removing input voltage resets the time delay and the output.

Features:

12 or 24VDC; 24,120, or 230VAC input voltages

Fixed or adjustable delays from 0.05s - 10m in 8 ranges

Repeat accuracy ±2%

Load currents to 1A, 10A inrush

Totally solid state & encapsulated

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-XX

P/N: P1004-XX-X

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Mounting bracket: P/N: P1023-6

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Versa-knob: P/N: P0700-7

Plug-on adjustment module: P/N: VTP(X)(X)

Download the The SSAC Product Line catalog in *.pdf format
Download the The TS2 / TS6 Series Datasheet datasheet in *.pdf format
