TS441165 - SSAC Timer Delay-on-Make NC 120VAC 1A FXD 165s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TS4 Series >

TS441165

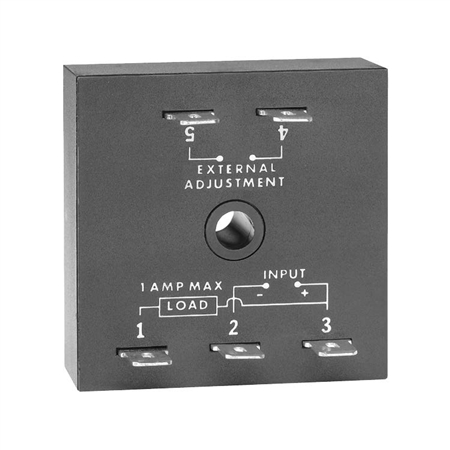

This is a family photo and may not be an accurate representation of the product.

Price: $47.50

Returnable: NOT RETURNABLE
Manufacturer SKU: TS441165
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TS441165

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TS441165 - SSAC Timer Delay-on-Make NC 120VAC 1A FXD 165s 2x2

The TS4 Series Family

The TS4 Versa-Timer is an analog delay-on-make timer with a normally closed solid-state output. Unlike an interval timer, the load is energized prior to and during the time delay period. It can be used as a faster starting interval time delay when S1 is closed upon application of input voltage.

Operation (Delay-on-Make NC):
Upon application of input voltage, the load is energized immediately. When the initiate switch is closed, the time delay begins. At the end of the time delay, the load de-energizes.
Reset: When the initiate switch is reopened, the load again energizes and the time delay is reset. Removing input voltage resets the time delay and output.

Features:

Fixed or adjustable delay

Load energized prior to & during time delay

0.05 - 600s in 4 ranges

±2% repeat accuracy

24, 120, or 230VAC

1A, solid-state output

Encapsulated

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-XX

P/N: P1004-XX-X

Mounting bracket: P/N: P1023-6

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Plug-on adjustment module: P/N: VTP(X)(X)

Download the The SSAC Product Line catalog in *.pdf format
Download the The TS4 Series Datasheet datasheet in *.pdf format
