TSB41300 - SSAC Timer Delay-on-Break 120VAC 1A FXD 300s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TSB Series >

TSB41300

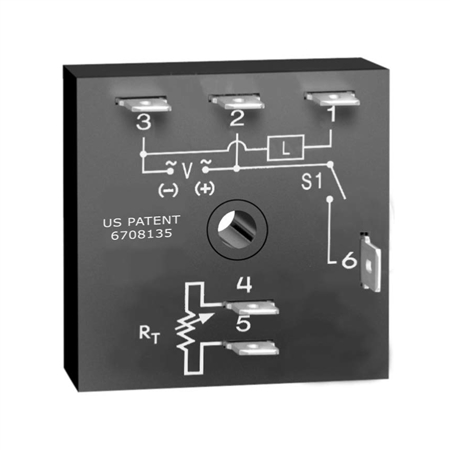

This is a family photo and may not be an accurate representation of the product.

Price: $51.27

Returnable: NOT RETURNABLE
Manufacturer SKU: TSB41300
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TSB41300

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TSB41300 - SSAC Timer Delay-on-Break 120VAC 1A FXD 300s 2x2

The TSB Series Family

The TSB Series is a totally solid-state, delay-on-break timing module. The TSB is available with a fixed, external, or onboard adjustable time delay. Time Delays from 0.05 to 600 seconds, in 4 standard ranges, cover over 90% of all OEM and commercial appliance timing applications. The repeat accuracy is ±2%. Operating voltages of 24, 120, or 230VAC are available. The TSB's 1A steady state, 10A rated, solid-state output is perfect for direct control of solenoids, contactors, relays, lamps, buzzers, and small heaters. The TSB can be surface mounted with a single screw, or snapped on a 35 mm DIN rail using the P1023-20 adaptor.

Operation (Delay-on-Break):
Input voltage must be applied before and during timing. Upon closure of the initiate switch, the output energizes. The time delay begins when the initiate switch opens. The output remains energized during timing. At the end of the time delay, the output de-energizes. The output will energize if the initiate switch is closed when input voltage is applied.
Reset: Reclosing the initiate switch during timing resets the time delay. Loss of input voltage resets the output and the time delay.

Features:

Fixed or adjustable 0.05 - 600s in 4 ranges

Totally solid state & encapsulated

± 2% repeat accuracy

±5% factory calibration

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Mounting bracket: P/N: P1023-6

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The TSB Series Datasheet datasheet in *.pdf format
