TSD3411S - SSAC Timer Recycling 120VAC SS FXD 1s Onoff 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TSD3 Series >

TSD3411S

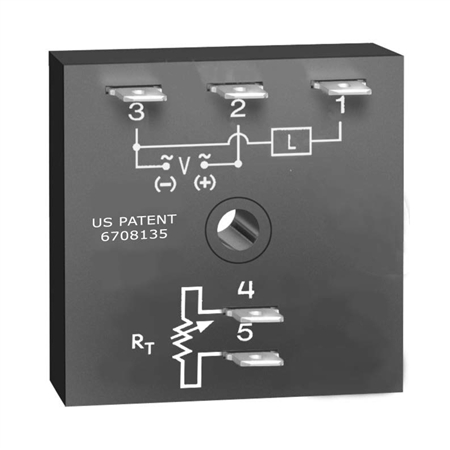

This is a family photo and may not be an accurate representation of the product.

Price: $61.62

Manufacturer SKU: TSD3411S
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TSD3411S

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TSD3411S - SSAC Timer Recycling 120VAC SS FXD 1s Onoff 2x2

The TSD3 Series Family

The TSD3 is a solid-state ON/OFF recycling timer with the on time always equal to the off time. When time delay is changed by the RT, both the ON and the OFF periods are changed. The TSD Series is designed for more demanding commercial and industrial applications where small size, and accurate performance is required. The factory calibration for fixed time delays is within 1% of the target time delay. The repeat accuracy, under stable conditions, is 0.1% of the time delay. The TSD Series is rated to operate over an extended temperature range. Time delays of 0.1 seconds to 100 hours are available. The output is rated 1A steady and 10A inrush. The modules are totally solid state and encapsulated to protect the electronic circuitry.

Operation (Recycling Falsher - ON Time First):
Upon application of input voltage, the output energizes and the T1, ON time begins. At the end of the ON time, the output de-energizes and the T2 OFF time begins. At the end of the OFF time, the output energizes and the cycle repeats as long as input voltage is applied.
Reset: Removing input voltage resets the output and time delays, and returns the sequence to the T1 ON time.

Features:

Equal on and off delays

Fixed or adjustable delays from 0.1s - 100h

±0.1% repeat accuracy

±1% factory calibration

24, 120, or 230VAC

1A, solid-state output

Encapsulated

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Mounting bracket: P/N: P1023-6

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The TSD3 Series Datasheet datasheet in *.pdf format
