TSS424 - SSAC Timer Single Shot 120VAC SS Ext Adjustable 5 600s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > TSS Series >

TSS424

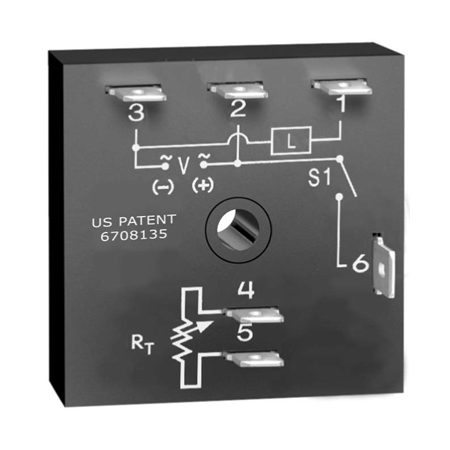

This is a family photo and may not be an accurate representation of the product.

Price: $49.06

Returnable: NOT RETURNABLE
Manufacturer SKU: TSS424
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: TSS424

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

TSS424 - SSAC Timer Single Shot 120VAC SS Ext Adjustable 5 600s 2x2

The TSS Series Family

The TSS is a totally solid-state timing module. Its 1A rated, solid-state output provides an excellent method of time control for exposures, dispensing, or for increasing or decreasing a switch closure. Time delays from 0.05 to 600 seconds, in 4 ranges, cover 90% of all OEM applications. Factory calibration of fixed delays is ±5% and the repeat accuracy is ±2%. The TSS can be surface mounted with a single screw, or snapped on a 35mm DIN rail using the P1023-20 accessory adaptor.

Operation (Single Shot):
Voltage must be applied before and during timing. Upon momentary or maintained closure of the initiate switch, the output energizes for a measured interval of time. At the end of the delay, the output de-energizes. Opening or reclosing the initiate switch during timing has no affect on the time delay. The output will energize if the initiate switch is closed when input voltage is applied.
Reset: Reset occurs when the time delay is complete and the initiate switch opens. Loss of input voltage resets the time delay and output.

Features:

Expands or decreases switch closures

Momentary or maintained initiate switch

Totally solid state

Encapsulated to protect against shock & vibration

Fixed or adjustable delays from 0.05 - 600s in 4 ranges

±2% repeat accuracy

±5% factory calibration

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Mounting bracket: P/N: P1023-6

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The TSS Series Datasheet datasheet in *.pdf format
