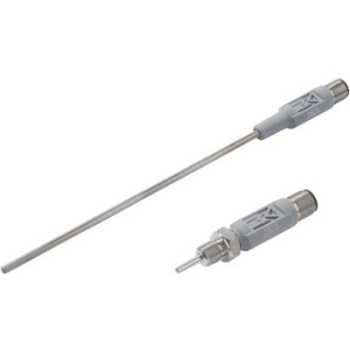

TTM100C-103A-G1/8-LI6-H1140-L013 - Turck Miniature Temperature Transmitter with 13mm probe length; 3mm probe; G1/8"threads; 0 to 100 Degree C; 4-pin eurofast QD (M9910549) (9910549)

TTM100C-103A-G1/8-LI6-H1140-Li - Turck
TTM100C-103A-G1/8-LI6-H1140-Li

Price: $160.00
Returnable: NOT RETURNABLE
Manufacturer SKU: TTM100C-103A-G1/8-LI6-H1140-L013
Manufacturer ID: 9910549


Availability: Stock
Part Number: TTM100C-103A-G1-8-LI6-H1140-LI
Qty:

Description


TURCK's new line of miniature temperature transmitters with an analog output that eliminates the need for specialized RTD PLC input cards, saving the user the expense associated with these cards. The transmitters stainless steel connection make them particularly suitable in the food and beverage arena.

The miniature temperature transmitters series provide a 4-20 mA output using an integrated PT100 resistance temperature detector. The miniature temperature transmitters are plug-and-play, and come pre-scaled at 0 to 100 degrees C, 0 to 150 degrees C, -50 to 50 degrees C, or -50 to 150 degrees C. The integrated probe is made with 316L stainless steel. These IP 67 rated miniature temperature transmitters use 10-24 VDC with two wire loop power.


(M9910549)
TTM100C103AG18LI6H1140Li
