USB-4671-A - Advantech USB-4671-A USB 2.0 GPIB Interface Module

USB-4671-A - Advantech
USB-4671-A

Price: $729.30
Manufacturer SKU: USB-4671-A



Availability: Usually Ships in 3 to 5 Days
Part Number: USB-4671-A
Qty:

Description

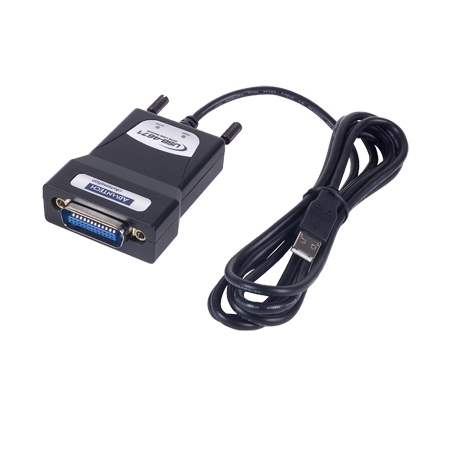

USB-4671-A - Advantech USB 2.0 GPIB Interface Module
USB-4671 is a high-performance USB Module with a GPIB interface. The module is fully compatible with IEEE 488.1 and 488.2 standards with USB 2.0 bus specification. With two driver control modes: controller mode and slave mode; USB-4671 can perform basic the IEEE 488 talker, listener and controller functions required by IEEE 488.2. You can also connect up to 15 GPIB instruments. Therefore, USB-4671 is especially suitable for instrument measurements and control.Furthermore, USB-4671 also offers powerful testing features and a configuration utility that allows users to easily access and control instruments. USB-4671 offers a comprehensive supplementary controller driver database and provides standard IEEE-488 commands to help users develop applications. Users can use an interactive GPIB window interface to control devices directly without any need of programming.

GPIB USB Module

  • Supports USB 2.0
  • Convenient portable design
  • Bus-powered
  • Complete IEEE 488.1 & 488.2 compatibility
  • Full driver, library, and example support, including; Visual C++®, Visual C#®, Visual Basic®, Visual Basic .NET®, Delphi®, and LabView
  • Provides powerful and easy-to-use configuration utility
  • No GPIB cable required for instrument connection
  • Plug & Play installation and configuration
pdfDownload the USB-4671-A brochure in *.pdf format
