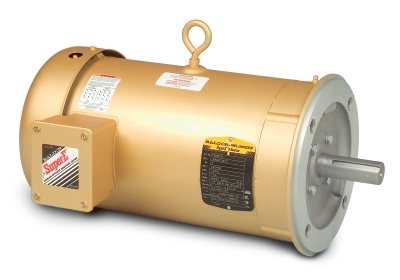

VEM3559T - Baldor 3HP, 3450RPM, 60HZ, 145TC, 3532M, TEFC, F1
Baldor - VEM3559T
VEM3559T

Price: $970.06
Returnable: NOT RETURNABLE
Manufacturer SKU: VEM3559T
Manufacturer ID: 35AA003Q060G1


Availability: Usually Ships within 24 hours
Part Number: VEM3559T
Qty:

Description Documents & Downloads

Please note that this product does NOT qualify for free shipping and may require truck freight.

VEM3559T - Baldor 3HP, 3450RPM, 60HZ, 145TC, 3532M, TEFC, F1

Applications: Operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.

Features: Ball bearings with a locked drive end bearing and heavy-gauge steel or cast iron frame. Super-E motors have NEMA Premium efficiency and 3 year warranty.
VEM3559T
Additional Product Information
pdfDownload the VEM3559T Data Sheet in *.pdf format
