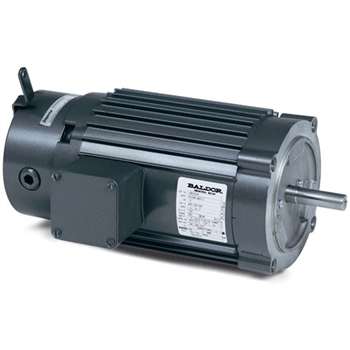

VRBM3546T - Baldor 1HP, 1725RPM, 3PH, 60HZ, 143TC, 3436M, TENV, F1, Motor
Baldor - VRBM3546T
VRBM3546T

Price: $2,385.94
Returnable: NOT RETURNABLE
Manufacturer SKU: VRBM3546T
Manufacturer ID: 781568468159



Availability: Usually Ships within 24 hours
Part Number: VRBM3546T
Qty:

Description Documents & Downloads

Applications: Unit and baggage handling, conveyors and other applications requiring frequent starting and stopping

Features: UL/CSA recognized and CE certified. Low inertia high efficiency motor with cast aluminum footless frame for increased thermal dissipation specific to this application. An internally connected DC brake with integral rectifier provides for faster action than traditional spring-set brakes. Not suitable for use with inverters + thru 1 Hp in TENV enclosure; Dodge brake on 1.5 thru 3 Hp as TEFC enclosure.
VRBM3546T
Additional Product Information
pdfDownload the VRBM3546T Data Sheet in *.pdf format
