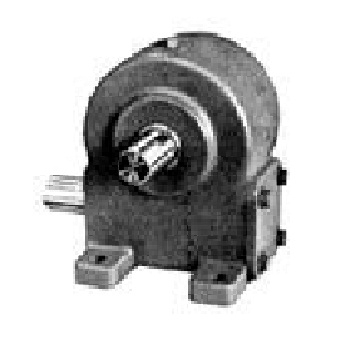

Worm Gear Reducer Model 418 Rugged Cast Iron Housing with SAE 2 Bolt 'A' Flange
Worm Gear Reducer Model 418 Rugged Cast Iron Housing with SAE 2 Bolt 'A' Flange
Worm Gear Reducer Model 418 Rugged Cast Iron Housing with SAE 2 Bolt 'A' Flange

Call to Order!
(800) 876-4444
  • A hardened, ground worm drives the centrifugally cast bronze gear for high efficiency and long life
  • Output torque from 918 to 2.868 inch pounds
  • Weight: 30 pounds
  • All ratings based on Class 1 Service Factor
  • Cast Iron Gear Also Available
  • Other input flanges available in quantity on a special order basis

    pdfDownload the Worm Gear Reducer Model 418 Rugged Cast Iron Housing with SAE 2 Bolt 'A' Flange Data Sheet in *.pdf format

    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-136 5:1
    AR
    Type AR
    .23hp@25rpm
    .45hp@50rpm
    .84hp@100rpm
    2.40hp@350rpm
    3.21hp@540rpm
    4.55hp@1125rpm
    5.49hp@1725rpm
    .18hp
    .35hp
    .69hp
    2.07hp
    2.84hp
    4.15hp
    5.10hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-140 5:1
    BR
    Type BR
    .23hp@25rpm
    .45hp@50rpm
    .84hp@100rpm
    2.40hp@350rpm
    3.21hp@540rpm
    4.55hp@1125rpm
    5.49hp@1725rpm
    .18hp
    .35hp
    .69hp
    2.07hp
    2.84hp
    4.15hp
    5.10hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-141 5:1
    CR
    Type CR
    .23hp@25rpm
    .45hp@50rpm
    .84hp@100rpm
    2.40hp@350rpm
    3.21hp@540rpm
    4.55hp@1125rpm
    5.49hp@1725rpm
    .18hp
    .35hp
    .69hp
    2.07hp
    2.84hp
    4.15hp
    5.10hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-143 5:1
    DR
    Type DR
    .23hp@25rpm
    .45hp@50rpm
    .84hp@100rpm
    2.40hp@350rpm
    3.21hp@540rpm
    4.55hp@1125rpm
    5.49hp@1725rpm
    .18hp
    .35hp
    .69hp
    2.07hp
    2.84hp
    4.15hp
    5.10hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-144 5:1
    GR
    Type GR
    .23hp@25rpm
    .45hp@50rpm
    .84hp@100rpm
    2.40hp@350rpm
    3.21hp@540rpm
    4.55hp@1125rpm
    5.49hp@1725rpm
    .18hp
    .35hp
    .69hp
    2.07hp
    2.84hp
    4.15hp
    5.10hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-116 5:1
    HR
    Type HR
    .23hp@25rpm
    .45hp@50rpm
    .84hp@100rpm
    2.40hp@350rpm
    3.21hp@540rpm
    4.55hp@1125rpm
    5.49hp@1725rpm
    .18hp
    .35hp
    .69hp
    2.07hp
    2.84hp
    4.15hp
    5.10hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-133 10:1
    AR
    Type AR
    .17hp@25rpm
    .31hp@50rpm
    .58hp@100rpm
    1.60hp@350rpm
    2.10hp@540rpm
    2.89hp@1125rpm
    3.50hp@1725rpm
    .11hp
    .21hp
    .41hp
    1.23hp
    1.68hp
    2.44hp
    3.04hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-112 10:1
    BR
    Type BR
    .17hp@25rpm
    .31hp@50rpm
    .58hp@100rpm
    1.60hp@350rpm
    2.10hp@540rpm
    2.89hp@1125rpm
    3.50hp@1725rpm
    .11hp
    .21hp
    .41hp
    1.23hp
    1.68hp
    2.44hp
    3.04hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-142 10:1
    CR
    Type CR
    .17hp@25rpm
    .31hp@50rpm
    .58hp@100rpm
    1.60hp@350rpm
    2.10hp@540rpm
    2.89hp@1125rpm
    3.50hp@1725rpm
    .11hp
    .21hp
    .41hp
    1.23hp
    1.68hp
    2.44hp
    3.04hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-126 10:1
    DR
    Type DR
    .17hp@25rpm
    .31hp@50rpm
    .58hp@100rpm
    1.60hp@350rpm
    2.10hp@540rpm
    2.89hp@1125rpm
    3.50hp@1725rpm
    .11hp
    .21hp
    .41hp
    1.23hp
    1.68hp
    2.44hp
    3.04hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-145 10:1
    GR
    Type GR
    .17hp@25rpm
    .31hp@50rpm
    .58hp@100rpm
    1.60hp@350rpm
    2.10hp@540rpm
    2.89hp@1125rpm
    3.50hp@1725rpm
    .11hp
    .21hp
    .41hp
    1.23hp
    1.68hp
    2.44hp
    3.04hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-118 10:1
    HR
    Type HR
    .17hp@25rpm
    .31hp@50rpm
    .58hp@100rpm
    1.60hp@350rpm
    2.10hp@540rpm
    2.89hp@1125rpm
    3.50hp@1725rpm
    .11hp
    .21hp
    .41hp
    1.23hp
    1.68hp
    2.44hp
    3.04hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-110 20:1
    AR
    Type AR
    .13hp@25rpm
    .23hp@50rpm
    .41hp@100rpm
    1.05hp@350rpm
    1.35hp@540rpm
    1.79hp@1125rpm
    2.09hp@1725rpm
    .06hp
    .11hp
    .22hp
    .66hp
    .90hp
    1.30hp
    1.60hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-111 20:1
    BR
    Type BR
    .13hp@25rpm
    .23hp@50rpm
    .41hp@100rpm
    1.05hp@350rpm
    1.35hp@540rpm
    1.79hp@1125rpm
    2.09hp@1725rpm
    .06hp
    .11hp
    .22hp
    .66hp
    .90hp
    1.30hp
    1.60hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-128 20:1
    CR
    Type CR
    .13hp@25rpm
    .23hp@50rpm
    .41hp@100rpm
    1.05hp@350rpm
    1.35hp@540rpm
    1.79hp@1125rpm
    2.09hp@1725rpm
    .06hp
    .11hp
    .22hp
    .66hp
    .90hp
    1.30hp
    1.60hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-115 20:1
    DR
    Type DR
    .13hp@25rpm
    .23hp@50rpm
    .41hp@100rpm
    1.05hp@350rpm
    1.35hp@540rpm
    1.79hp@1125rpm
    2.09hp@1725rpm
    .06hp
    .11hp
    .22hp
    .66hp
    .90hp
    1.30hp
    1.60hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-109 20:1
    GR
    Type GR
    .13hp@25rpm
    .23hp@50rpm
    .41hp@100rpm
    1.05hp@350rpm
    1.35hp@540rpm
    1.79hp@1125rpm
    2.09hp@1725rpm
    .06hp
    .11hp
    .22hp
    .66hp
    .90hp
    1.30hp
    1.60hp
    Item Number Ratio Shaft Arrangement and Rotation
    Input Specs Output Specs
    418-146 20:1
    HR
    Type HR
    .13hp@25rpm
    .23hp@50rpm
    .41hp@100rpm
    1.05hp@350rpm
    1.35hp@540rpm
    1.79hp@1125rpm
    2.09hp@1725rpm
    .06hp
    .11hp
    .22hp
    .66hp
    .90hp
    1.30hp
    1.60hp


    For more information, application assistance, or to place an order, please call us at 203-426-7700
