ZAA-Encoder - Applied Motion Products Incremental Encoder for HT23 and HT24 Step Motors (970-1001)

ZAA Encoder - Applied Motion Products
ZAA Encoder

Price: $192.85
Manufacturer SKU: ZAA Encoder
Manufacturer ID: 970-1001



Availability: Usually Ships in 3 to 5 Days
Part Number: ZAA-ENCODER
Qty:

Description

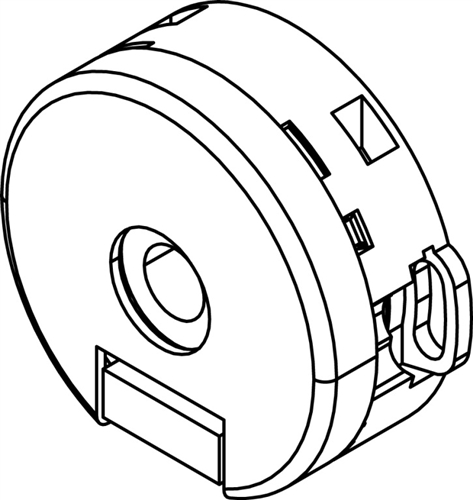

The ZAA incremental encoder fits on the rear shafts of HT23 and HT24 step motors. To order the encoder factory-assembled onto the rear shaft of the motor add the ZAA suffix to the end of the double-shaft step motor part number. For example, order HT23-601D-ZAA to purchase the HT23-601D step motor and ZAA encoder as a single, factory-assembled part number.

To connect the ZAA encoder to your stepper drive or motion controller you’ll need the 3004-195-10 extension cable


  • Fits onto rear shaft of HT23 and HT24 step motors
  • 1/4” hub diameter
  • 2000 lines (8000 counts per rev.)
  • A, B, and Z (Index) channels
  • Differential outputs
  • Use with 3004-195-10 extension cable
