777-ACCUPOWER - SymCom 3-Phase Power Monitor 190-480V 2-800 FLA Output Power

Home > Manufacturers > P - S > SYMCOM > SYMCOM Electronic Controls & Protection > Complete Motor Protection > Power Monitors >

777-ACCUPOWER

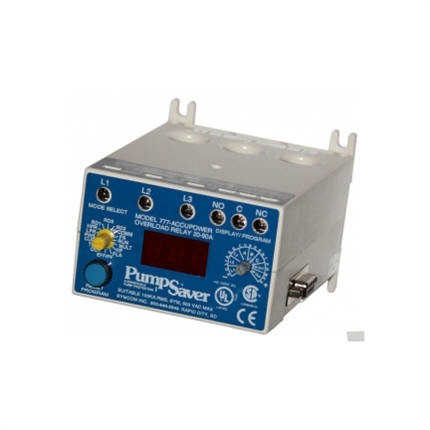

This is a family photo and may not be an accurate representation of the product.

Price: $617.61

Returnable: NOT RETURNABLE
Manufacturer SKU: 777-AccuPower

Availability: Usually Ships in 3 to 5 Days
Part Number: 777-ACCUPOWER

Qty:

Description

777-ACCUPOWER - SymCom 3-Phase Power Monitor 190-480V 2-800 FLA Output Power

The Model 777-AccuPower Family
A fully-programmable 3-phase motor and pump protection relay. It allows motor hp rating, full load amps, efficiency and power factor to be entered and will accurately calculate motor output power. This is most useful with mag-drive pumps or process applications where the process power is desired over the utility power. Voltage, current and power measurements can be displayed as well as fault information and setpoints. The built-in display simplifies troubleshooting and allows the user to easily and precisely configure setpoints. The 777-AccuPower can be used with SymCom's 4-20mA output module to give an analog signal proportional to output shaft power.

Features:

Motor output power measurement
3 separate restart timers for rapid-cycle protection, motor cool down and dry-well recovery
Built-in 3-digit display for setup and diagnostics
Last fault indication on display
Last 4 faults available on network or remote displays
Optional remote displays (RM-1000 or
RM-2000) via Modbus communications
Limited Modbus capabilities
Adjustable underload trip delay (network only)
Power factor measurement (network readable)
Run-hour meter (network readable)
4-20mA scalable output signal

Auxiliary Products:

Communication Modules: COM 4-20
RM-1000/RM-2000 (remote displays): P/N: RM-1000, P/N: RM-1000-3R, P/N: RM-1000 NEMA 4, P/N: RM-2000, P/N: RM-2000-CBM+, P/N: RM-2000-RTDW
RS485MS-2W (for limited Modbus capabilities)
