EOT16U3M3-S - ABB EOT16U3M3-S, 3P SW 20A NF N3R/12

EOT16U3M3-S - ABB
EOT16U3M3-S

Price: $212.19
Manufacturer SKU: EOT16U3M3-S
Manufacturer ID: 804325571395



Availability: Usually Ships in 3 to 5 Days
Part Number: EOT16U3M3-S
Qty:

Description

EOT16U3M3-S - ABB EOT16U3M3-S, 3P SW 20A NF N3R/12

Cutting edge design and technology. eOT ensures reliable switching time after time.

General information

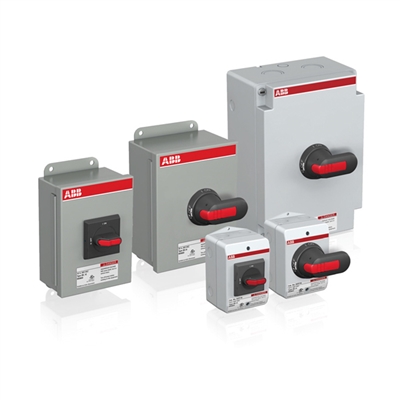

The eOT series of enclosed manual motor controllers are rotary operated, 3 pole, 600V Hp rated switches, housed in thermoplastic/polycarbonate or sheet steel enclosures. They are suitable for wet and corrosive environments.

Plastic enclosed manual motor controllers
  • UL/NEMA 3R/12 and NEMA 4X versions
  • Standard black handle, selector or pistol type
Steel sheet enclosed switches
  • UL/NEMA 3R/12 versions
  • Standard black handle, selector or pistol type
Outstanding features
  • cUL approval, UL508 Listed, UL98
  • Suitable as motor disconnect
  • Horsepower rated
  • Touch safe construction
  • Positive operation
  • Clear position indication
  • Self lifting tunnel terminals
  • Extremely compact size
  • Accessories
    • 4th power pole
    • Snap-on auxiliary contacts
Clean and simple installation
Plastic enclosures have conduit knockouts provided on the top and bottom of the enclosure. Plastic enclosures have a metallic base plate that electrically bonds together all conduit hubs installed in the top and bottom of the enclosure - additional conduit bonding jumpers are not required.

Plastic enclosure installs flush on mounting surface, reducing the accumulation of dirt behind the enclosure. Sealed enclosure cover is water tight, suitable for hose-down environments (Type 4X version only).

pdfDownload the Enclosed Switches - eOT specification sheet in *.pdf format
