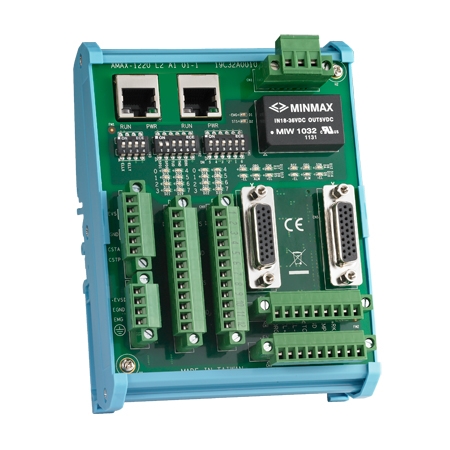

AMAX-1220-AE - Advantech AMAX-1220-AE Open Frame 2-Axis Motion Module

AMAX-1220-AE - Advantech
AMAX-1220-AE

Price: $468.00
Manufacturer SKU: AMAX-1220-AE



Availability: Usually Ships in 3 to 5 Days
Part Number: AMAX-1220-AE
Qty:

Description

AMAX-1220-AE - Advantech Open Frame 2-Axis Motion Module
AMAX-1220 and AMAX-1240 have compact open frame designs for horizontal placement and an interface connector mounted on the board. With a transfer cable to servo drive, both models can conveniently connect to Mitsubishi J3, Yaskwa Sigma V and Panasonic A4/A5.The AMAX-1220 is an economic 2-axis AMONet slave module which supports motion functionality in point-to-point (PTP), linear & circular interpolation, simultaneously start/stop among multiple slave modules, and brake signal to servo for emergence consideration. The AMAX-1240 is an advanced 4-axis AMONet slave module which not only supports AMAX-1220 motion functionality, but also supports advanced features in position compare and triggering function. Both linear interval and table setups are supported.
  • End limit logic is switchable (high or low active)
  • BoardID is switchable
  • Easily visible LED indicators on board to do diagnosis.
  • Direct wire to servo drive to save terminal board space while installation.
  • Max. 6.5 MHz, 4-axis pulse output
  • 28 bits counter for incremental encoder
  • Horizontal installation for for servo or stepping motor driver
  • Suitable for DIN-rail mounting
pdfDownload the AMAX-1220-AE brochure in *.pdf format
