AMAX-1756-AE - Advantech AMAX-1756-AE Open Frame 16-ch Isolated DI/16-ch DO M

AMAX-1756-AE - Advantech
AMAX-1756-AE

Price: $246.00
Manufacturer SKU: AMAX-1756-AE



Availability: Usually Ships in 3 to 5 Days
Part Number: AMAX-1756-AE
Qty:

Description

AMAX-1756-AE - Advantech Open Frame 16-ch Isolated DI/16-ch DO M

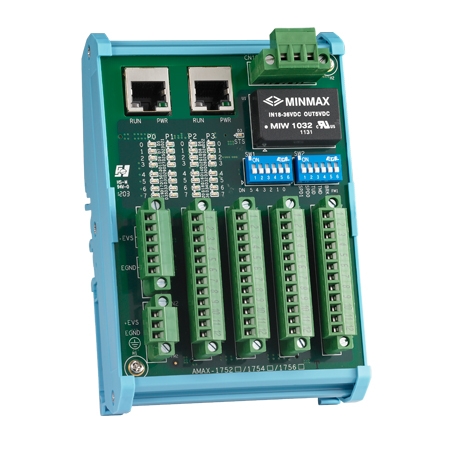

The AMAX-1752, AMAX-1754 and AMAX-1756 are compact open frame designs for horizontal placement, on-board screw terminal for direct wiring and on-board easily-visible LED indicators are for system diagnosis. All the digital I/O slave modules could be connected and distributed by standard LAN cables thereby saving wiring costs and maintenance. Three models are introduced: 32-ch digital input (AMAX-1752), 32-ch digital output (AMAX-1754) and 16-ch digital input/output (AMAX-1756). According to maximum communication baud rate, 2048 I/O points can be scanned and updated within 1.04 ms.
  • Communication baud rate, 2.5Mbps, 5Mbps, 10Mbps and 20Mbps are supported and switchable.
  • Onboard screw terminal for direct wiring
  • 2,500 VRMS Isolation voltage
  • Suitable for DIN-rail mounting
  • BoardID is switchable
  • Easily visible LED indicators on board to do diagnosis.
pdfDownload the AMAX-1756-AE brochure in *.pdf format
