Highest Precision High Wear Resistance Suited for High Cycle Rate/ Short Move Application. Rotary Flange, Round, Thru Hole Flange, Machine Mounting, Increased Torque Capability

Output torque

• • T2N : Up to 13,875 Nm

  Frame Sizes (mm)

  • 110/140/200/255/285/355/450

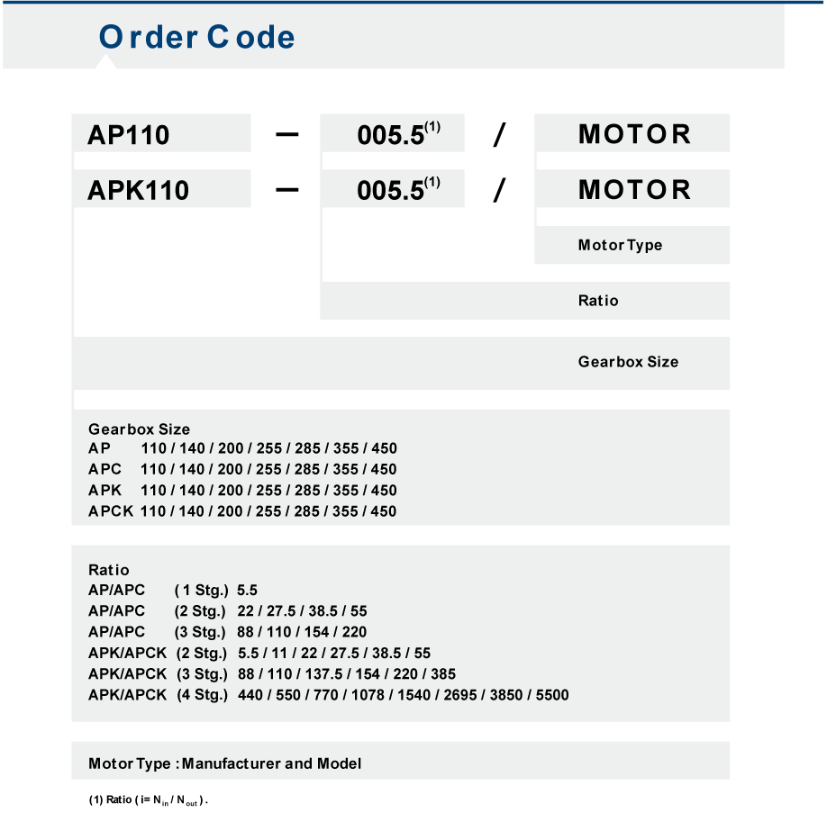

  Ratios

  • 1-stage : 5.5
  • 2-stage : 22 / 27.5 / 38.5 / 55
  • 2-stage : 88 / 110 / 154 / 220

  Lowest Backlash - High Wear Resistance

  • 1 / 2 / 3-stage : ≤1 arcmin

  High Efficiency

  • 1-stage : ≧ 97%
  • 2-stage : ≧ 94%
  • 2-stage : ≧ 92%

  Easy mount
  Low Noise
  Compact structure
