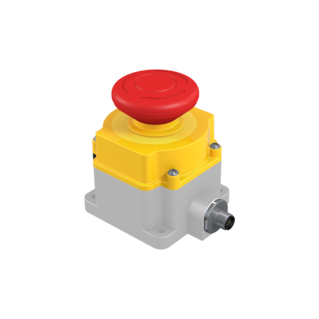

SSA-EB2PLXR-12ED1Q8 - Banner SSA-EB2PLXR-12ED1Q8, Emergency Stop: Flush Mount 60 mm Push Button; Environ. Rating: IP65; Lighted; Color: Red Solid/Flashing; 2 N.C. safety contacts; 1 N.O. aux.; Euro M12 8-pin Quick-Disconnect

SSA-EB2PLXR-12ED1Q8 - Banner
SSA-EB2PLXR-12ED1Q8

Price: $241.00
Manufacturer SKU: SSA-EB2PLXR-12ED1Q8
Manufacturer ID: 87274

Quantity in Stock:2


Availability: Usually Ships in 3 to 5 Business Days
Part Number: SSA-EB2PLXR-12ED1Q8
Qty:

Description

SSA-EB2PLXR-12ED1Q8 Emergency Stop: Flush Mount 60 mm Push Button; Environ. Rating: IP65; Lighted; Color: Red Solid/Flashing; 2 N.C. safety contacts; 1 N.O. aux.; Euro M12 8-pin Quick-Disconnect

Overview:

Models SSA-EB... series are "mushroom-style" electro-mechanical emergency stop push buttons. When the button is armed, the switchs safety contacts (N.C.) are closed and its monitoring contacts (N.O.) if present, are open. When the button is pushed, the switchs safety contacts open and the monitoring contacts close. The contacts remain in this condition until the push button is manually rearmed by pulling or twisting clockwise the red push button actuator.

The SSA-EB1p-ECQ series has a 30 mm mounting base similar to Banner's OTB, VTB, STB Optical Touch Buttons for ease of mounting without requiring an additional enclosure.

Features:

  • Rugged design; easy installation with no assembly or individual wiring required
  • Push-to-stop, twist-to-release, or pull-to-release operation per IEC60947-5-5
  • Latching design complies with ISO 13850; direct (positive) opening operation per IEC 60947-5-1
  • Compliant with ANSI B11.19, ANSI NFPA79, and IEC/EN 60204-1 Emergency Stop requirements
  • "Safe Break Action" ensures N.C. contacts will open if the contact block is separated from the actuator
  • 4-,5-, or 8-pin M12/Euro-style Quick Disconnect
  • Models Designed to interface with Safety BUS nodes/gateways
  • "Emergency Stop" legend included
