Minimum size, maximum performance

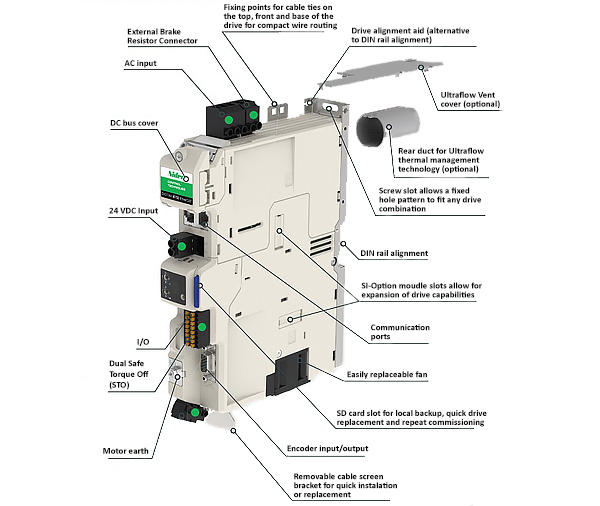

The Digitax HD servo series delivers ultimate motor control performance and flexibility, from a uniquely compact package. Targeting high axis count automation systems, Digitax HD provides all of the benefits of a modular system with a common DC bus, with standalone drive flexibility. The drives wide power range provides 6.2 – 451.4 lb-in (0.7 – 51 Nm) with 3x peak torque (1.5A – 16A and 48A peak).
The series is focused on high overload, pulse duty applications but also provides continuous servo control, plus induction motor control, and is initially available with two functionality levels.
Reduce cost with small servo drives
- Drive width of only 40mm
- Reduce cabinet height with UltraFlow technology which dissipates heat directly outside of the cabinet
- Install Digitax HD in a cabinet just 200mm deep
Boost throughput with maximum motion control
- 300% peak current performance pulse-duty overload
- Optimized control loops for high dynamic performance
- Up to 16 kHz switching frequency
