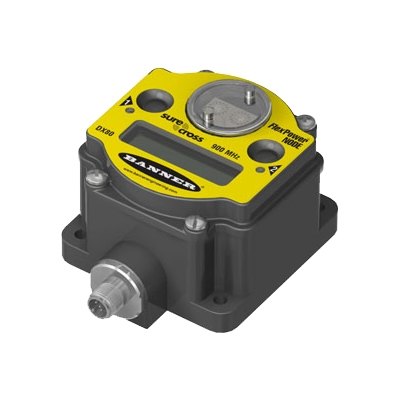

DX80DR9M-H14 - Banner Engineering MultiHop Modbus Slave with internal battery and multiple I/O options, 900 MHz

DX80DR9M-H14
DX80DR9M-H14

Price: $599.00
Manufacturer SKU: DX80DR9M-H14
Manufacturer ID: 800200



Availability: Usually Ships in 3 to 5 Business Days
Part Number: DX80DR9M-H14
Qty:

Description

DX80DR9M-H14 - Banner Engineering MultiHop Modbus Slave with internal battery and multiple I/O options, 900 MHz

MultiHop Internal Battery, 900MHz 1W/250mW
1 Configurable Digital Input, 1 Analog Voltage Input (configurable to Current)
1 Thermistor Input, 1 Switch Power Output, 1 Asynchronous Counter, SDI-12, Gland Bottom, Vent Plug Top.

Sure Cross® MultiHop data radios are wireless industrial communication devices used to extend the range of a Modbus or other serial communication network.
  • Wireless industrial I/O device with one configurable discrete input, one configurable analog input, one thermistor input, one SDI-12 input, one asynchronous counter input, and one switch power output
  • Selectable transmit power levels of 250 mW or 1 Watt for 900 MHz models and 65 mW for 2.4 GHz models
  • Self-healing, auto-routing RF network with multiple hops extends the network's range
  • Serial and I/O communication on a Modbus platform
  • Message routing improves link performance
  • DIP switches select operational modes: master, repeater, or slave
  • Built-in site survey mode enables rapid assessment of a location's RF transmission properties
  • FHSS radios operate and synchronize automatically
  • Field-wireable terminals for wiring I/O

Integrated battery models are also available without batteries. If you purchase a model without the battery, Banner Engineering recommends using the XENO XL-205F battery or equivalent. For Class I Division 1/Zone 0 and Class I Division 2/Zone 2 environments, only a XENO XL-205F battery is certified.

pdfDownload the MultiHop Radio with SDI-12 (M-H14) Datasheet in *.pdf format
