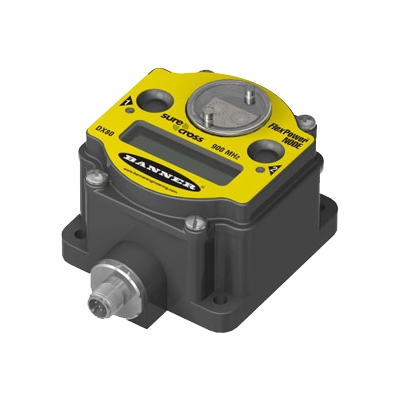

DX80N2X1S-P14 - Banner Engineering Performance node with internal battery and multiple I/O options, 2.4 GHz

DX80N2X1S-P14
DX80N2X1S-P14

Price: $599.00
Manufacturer SKU: DX80N2X1S-P14
Manufacturer ID: 800199



Availability: Usually Ships in 3 to 5 Business Days
Part Number: DX80N2X1S-P14
Qty:

Description

DX80N2X1S-P14 - Banner Engineering Performance node with internal battery and multiple I/O options, 2.4 GHz

Node Internal Battery 2.4 GHz 100mW
1 Configurable Digital Input, 1 Analog Voltage Input (configurable to Current)
1 Thermistor Input, 1 Switch Power Output, 1 Asynchronous Counter, SDI-12

The Sure Cross® wireless system is a radio frequency network with integrated I/O that can operate in most environments and eliminate the need for wiring runs. Wireless networks are formed around a Gateway, which acts as the wireless network master device, and one or more Nodes.
  • Wireless industrial I/O device with one configurable discrete input, one configurable analog input, one thermistor input, one asynchronous counter input, one SDI-12 input, and one switch power output
  • Selectable transmit power levels of 250 mW or 1 Watt for 900 MHz models and 65 mW for 2.4 GHz models
  • DIP switches for user configuration
  • Frequency Hopping Spread Spectrum (FHSS) technology and Time Division Multiple Access (TDMA) control architecture ensure reliable data delivery within the unlicensed Industrial, Scientific, and Medical (ISM) band
  • Transceivers provide bidirectional communication between the Gateway and Node, including fully acknowledged data transmission
  • Lost RF links are detected and relevant outputs set to user-defined conditions
  • Field-wireable terminals for wiring I/O

Integrated battery models are also available without batteries. If you purchase a model without the battery, Banner Engineering recommends using the XENO XL-205F battery or equivalent. For Class I Division 1/Zone 0 and Class I Division 2/Zone 2 environments, only a XENO XL-205F battery is certified.

pdfDownload the Performance Node with SDI-12 (P14) Datasheet in *.pdf format
