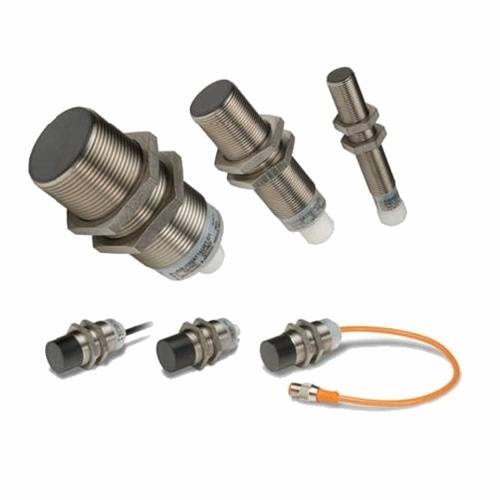

Eaton Cutler-Hammer (E59-M12A105C02-D2) 12mm iProx Proximity Sensor, DC, Shielded 5mm Sn, NC 2m Cable

E59-M12A105C02-D2 - Eaton Cutler-Hammer
E59-M12A105C02-D2

Price: $189.49
Manufacturer SKU: E59-M12A105C02-D2



Availability: Usually 3 - 5 Days
Part Number: E59-M12A105C02-D2
Qty:

Description

The iProx Proximity Sensor represents the highest performance, most versatile tubular inductive sensor offered by Eaton's electrical sector. By utilizing an embedded microprocessor and exclusive SmartSense technology, iProx can sense up to three times farther than typical sensors of its class, while providing an unheard-of level of customization.

Both shielded and unshielded versions of iProx feature extended sensing ranges. This allows the sensor to be mounted farther from the target, thereby reducing the potential for target impacts and increasing the sensing reliability of your application.

The iProx also includes a wide range of advanced features that can be enabled via optional programming tools. Using the ProxView Windows-based software package, an entirely custom sensor can be programmed to perfectly fit an application.

Sensor characteristics, such as sensing range, can be customized down to the nearest tenth of a millimeter. Outputs can be changed from NO to NC. The iProx even features built-in timing delays and speed detection logic. No PLC programming is necessary.

With extended sensing range, quality construction and the ability to adapt to its environment, iProx is the ideal choice for even the most demanding inductive sensing applications.

iProx Proximity Sensor Features:

  • Reliably detect metal targets at up to three times the range of conventional shielded or unshielded tubular inductive sensors
  • Auto-configure technology automatically detects a sinking (NPN) or sourcing (PNP) connection and switches the sensor accordingly, without any user intervention
  • Exclusive SmartSense embedded microprocessor technology allows for customizable range, band sensing, nuisance metal rejection, timing delays and over/under speed detection
  • Optional computer programming cable and Windows-based ProxView configuration software makes it easy to customize sensors
  • Quality construction using a stainless steel barrel, 360-degree dual-color LED indicator, Ryton impact-resistant face cap and vibration-absorbing potting compound
  • Withstands high electrical noise (up to 20 V/m)
