E57-18LE12-C1 - Eaton E57 Series, 18 mm Diameter End Sensing, Three-Wire, 6-48 Vdc, 12 mm Extended Range, Semi-shielded NPN, NC Output, 2-meter cable

E57-18LE12-C1 - Eaton
Price: $195.04
Manufacturer SKU: E57-18LE12-C1

Availability: 3 - 5 Days
Part Number: E57-18LE12-C1

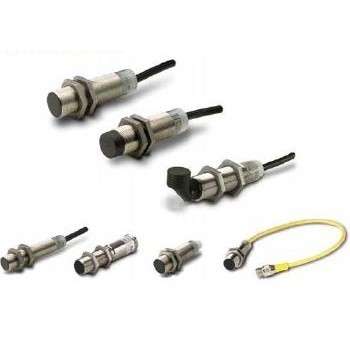

E57 Premium+ Series Sensors:

The Eaton E57 Premium+ Series Inductive Proximity Sensors by have improved sensing performance, product durability and selection. This improved line of sensors carries the Premium+ Series name because of it's rugged stainless steel body, shock-resistant front caps and impact-absorbing potting compound. Plus, the Premium+ Series line now includes a choice of AC, AC/DC and DC-only, 12, 18 and 30 mm sensors with unmatched noise immunity of greater than 20V/meter.

  • New expanded offering of two-wire, three-wire, AC, DC, and AC/DC multiple range sensor models
  • Manufactured to take physical and environmental abuse
  • Designed with stainless steel barrel and new potting compound for robust, high temperature, high pressure washdown, as well as intense shock and vibration applications
  • Unmatched high noise immunity eliminates problems associated with electrical noise (all models > 20V/meter)
  • 360 degree output status indicator is visible from any angle and in any light condition
  • Resettable short circuit protection and reverse polarity in select models
  • Right angle sensing models offer unique problem-solving capabilities
  • Wide temperature range -13 degree to 158 degree Fahrenheit (-25 degree to 70 degree Celsius) on cable, micro-style connections
