Enabling & Grip Switches
An enabling switch is a 3-position (OFF-ON-OFF) switch to allow a
machine operation only when the switch is lightly pressed and held in
the middle position (position 2). Because it disables machine operation
when released (position 1) or further depressed (position 3) by a
panicked operator, the safety of operators is ensured. Because
operators use pendants in hazardous environments performing teaching,
system changeover, and maintenance of robots, they must have protection
against unpredictable motion of robots, and therefore teaching
pendants are equipped with 3-position enabling switches.

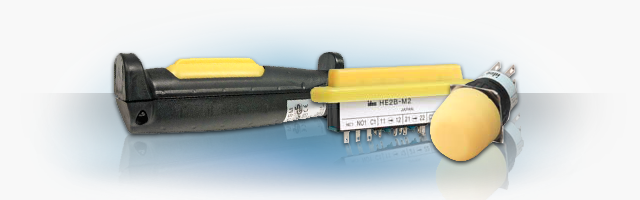

Enabling Switches
- HE1B Series
Basic Enabling Switch with 1NO contact for all OEM applications - HE2B Series
Redundant (Double) Enabling Switch with DPDT contacts and up to 2 Push and 2 Return monitor contacts. - HE3B Series
Rectangular push area Enabling Switch with DPDT snap action contacts. 16mm panel cut out for easy mounting. - HE5B Series
Round pushbutton type Enabling Switch with DPDT snap action contacts. 16mm panel cut out for easy mounting. - HE6B Series
3-position enabling switch with monitoring contacts—Smallest in its class
Grip Switches
- HE1G Grip Switch
Grip-style Enabling Switch with optional built-in E-stop - HE1G-L Light Grip Switch
Grip-style Enabling Switch with optional built-in E-stop, and has lighter operating force to On position - HE2G Compact Grip Switch
Compact design, grip-style Enabling Switch with optional built-in E-stop
|
|
