FIN740-068-M - Enerdoor FIN740.068.M 4-Phase Parallel Filter 600V

Home > Manufacturers > E - J > Enerdoor > Parallel Filters > FIN740 Series >

FIN740-068-M

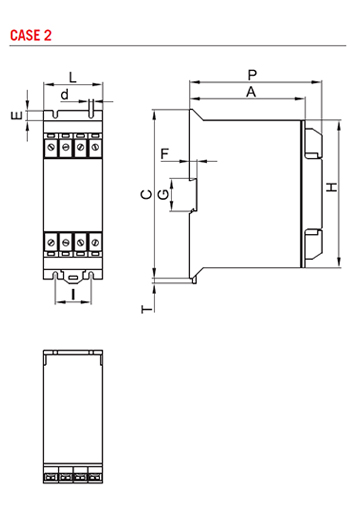

Image for illustration purposes only. Actual product may vary from description.

Price: $259.29

Manufacturer SKU: FIN740.068.M

Availability: Usually Ships in 3 to 5 Days
Part Number: FIN740-068-M

Qty:

Description

Technical Specs

FIN740-068-M - Enerdoor FIN740.068.M 4-Phase Parallel Filter 600V

Electric Characteristics
Capacitor Dielectric	Film polypropylene
Capacitor Electrodes	Vacuum deposited aluminium layers
Capacitor Construction	Extended double side metallized carrier film with internal series connection and metallized film
Resistor Construction	Metallic layer
Coating	Solvant resistant (UL94 V-I) plastic case with flame retardant (UL94 V-O) epoxy resin sealing
Standard Reference	IEC 68
Resistance Power	3W
Voltage Category	Nominal voltage at 85° C
Max Repetitive Pulse Rise Time	650 V/μs
Max Non-Repetitive Pulse Rise Time	1000 V/μs
Capacitor Dissipation Factor	<5x10 -4 measured at 1 kHz / 25±5°C
Insulation Resistance	>30 GΩ between terminals after 1 minute of energisation at 100 V / 25 ± 5°C
Climatic Class	- 40 / +85 °C

Download the FIN740-068-M in *.pdf format
