FS126-45 - SSAC Flasher 120VAC 1A 45Fpm 6 inch Wires

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Flashers > FSU1000 / FS100 Series >

FS126-45

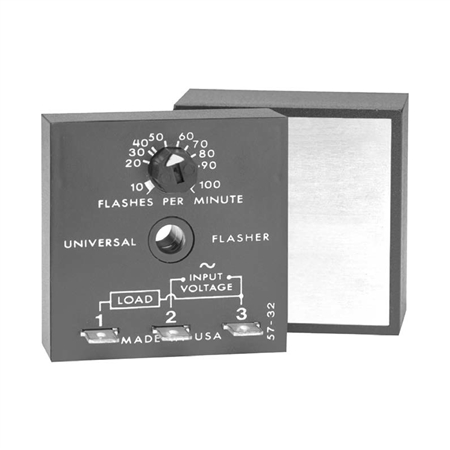

This is a family photo and may not be an accurate representation of the product.

Price: $28.27

Returnable: NOT RETURNABLE
Manufacturer SKU: FS126-45
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: FS126-45

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

FS126-45 - SSAC Flasher 120VAC 1A 45Fpm 6 inch Wires

The FSU1000 / FS100 Series Family

The FSU1000 incorporates an onboard adjustable flash rate of 10 to 100 FPM and a universal input voltage in one device. Its circuitry is encapsulated and is capable of controlling loads of up to 20A. The versatility of the FSU1000 makes it ideal for applications where various flash rates and operating voltages are required.

Operation
When input voltage is applied to terminal 2 and the load (lamp), the load energizes steadily. When input voltage is applied to terminal 3, the output flashes.
Optional Low Current Switch (S1)
This low current switch could be a limit switch or contact. While open, the operator sees the load (lamp) ON and operating. When the limit switch closes, the load (lamp) flashes to attract attention.

Features:

All solid state - no moving parts or contacts

Onboard adjustable flash rate

Loads up to 20A

High inrush up to 200A

Universal voltage 24 to 240VAC

Auxiliary Products:

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

P/N: P1015-14 (AWG 18/22)

Quick connect to screw adaptor: P/N: P1015-18

Download the The SSAC Product Line catalog in *.pdf format
Download the The FSU1000 / FS100 Series Datasheet datasheet in *.pdf format
