FS524 - SSAC Flasher 24VAC/DC Relay 10 100Fpm 8-PIN

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Flashers > FS500 Series >

FS524

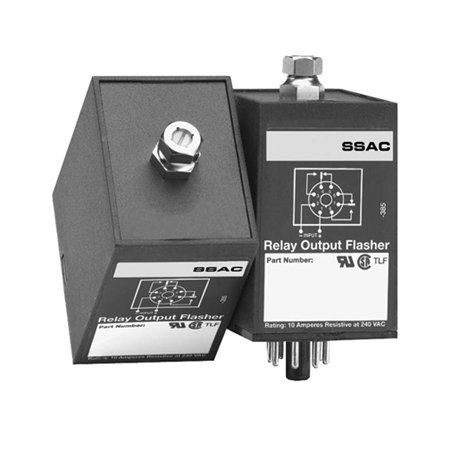

This is a family photo and may not be an accurate representation of the product.

Price: $86.03

Returnable: NOT RETURNABLE
Manufacturer SKU: FS524
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: FS524

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

FS524 - SSAC Flasher 24VAC/DC Relay 10 100Fpm 8-PIN

The FS500 Series Family

The FS500 Series flash rate is adjustable from 10 to 100 FPM. A locknut is provided to hold selected flash rate. The long-life electronic circuit combined with a quality electromechanical relay provides flexibility and reliability in most applications.

Operation
Upon application of input voltage, the output relay is energized and the ON time begins. At the end of the ON time, the output relay de-energizes and the OFF time begins. At the end of the OFF time, the output is energized and the cycle repeats as long as input voltage is applied. Reset: Removing input voltage resets the output and the sequence.

Features:

Solid-state circuitry - relay output

Industrial standard octal plug-in

Adjustable flash rate 10 - 100 FPM

10A, DPDT output contacts

Auxiliary Products:

Panel mount kit: P/N: BZ1

Octal 8-pin socket: P/N: NDS-8

Hold-down clips (sold in pairs): P/N: PSC8 (NDS-8)

DIN rail: P/N: C103PM (Al)
