224XST-024B - Federal Signal Strobe, 24VDC, hazardous location, 4-wire, blue, in-rush limited

224XST-024B - Federal Signal
224XST-024B

Price: $719.76
Manufacturer SKU: 224XST-024B
Manufacturer ID: 78297921556



Availability: Usually Ships in 1 to 2 Weeks
Part Number: 224XST-024B
Qty:

Description

224XST-024B - Federal Signal Strobe, 24VDC, hazardous location, 4-wire, blue, in-rush limited

Overview:

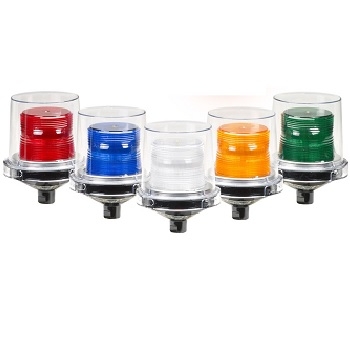

Federal Signal's Electraray Model 224XST hazardous location strobe light provides 80 high-intensity flashes per minute. This warning light is available in 24VDC.

The Model 224XST has been certified by UL as meeting Type 4X watertight and corrosion resistant requirements, constructed to IP66. This hazardous location warning light has a black polyurethane coated base and the inner fresnel lens is available in six colors (incluing magenta). The clear polycarbonate outer dome can be quickly removed for easy access to inspect the unit or change the lamp. The 224XST has an effective candela of 240 and a 580,000 peak candela.

The 224XST is UL Listed, CSA Certified and CSFM Approved for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; and Class III.

The 24VDC 224XST features a voltage in-rush limiting PCB design that provides greater compatibility control systems and less electrical interference with in-rush sensitive devices.

The Electraray 224XST contains a supervisory diode and four wireleads, for fire alarm applications.

Model 224XST is ideal for wet, corrosive atmospheres like those found in food processing industries, or anywhere a visual signal is needed.

Federal Signal's affordable Electraray Strobe Warning Light is specifically designed for use in hazardous locations or where corrosive materials are present.

Features:

  • 24VDC
  • Four wires and supervisory diode
  • Six lens colors
  • 10,000 hour, high-intensity strobe tube
  • 1/2-inch NPT pipe mount
  • Type 4X, IP66 enclosure
  • CSFM Approved
  • CSA Certified
  • UL and cUL Listed

    pdfDownload the 224XST-024B Datasheet in PDF format
