300-250 - Federal Signal SelecTone signal, 250VDC

300-250 - Federal Signal
300-250

Alternative Views:
Price: $1,343.68
Manufacturer SKU: 300-250
Manufacturer ID: 78297920050

Quantity in Stock:2


Availability: Usually Ships in 1 to 2 Weeks
Part Number: 300-250
Qty:

Description

300-250 - Federal Signal SelecTone signal, 250VDC

Overview:

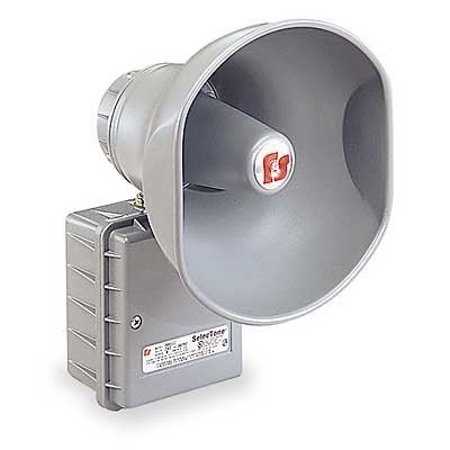

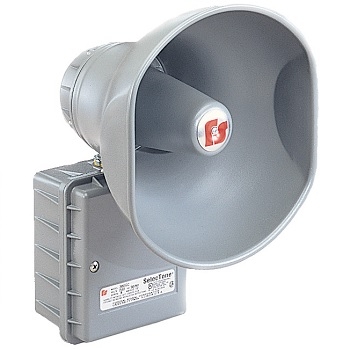

The Federal Signal SelecTone Model 300 is a lightweight and compact, solid-state audible signaling device designed to amplify a pre-selected tone over existing ambient noises. The speaker cone and projector are made of spun aluminum. The internal amplifier circuitry and tone module are contained in a housing of die-cast aluminum. Dust- and moisture-proof gasketing provides protection from the elements. All external components are sealed with gray enamel paint.

The Model 300 is designed for applications which have 12 or 250VDC power supplies. The 250VDC version is UL and cUL Listed. All models are rated Type 3R for indoor/outdoor use.

The Model UTM (Universal Tone Module) is used with this device to generate one of 32 tones. The Model 300 is designed to be used as a stand-alone, full output unit and cannot be used with a SelecTone Command System (public address is not possible).

Model 300 speaker/amplifiers are ideally suited for full output tone signaling where voice paging is not a requirement. Typical applications include emergency warning, start and dismissal, general alarm, smelters and cranes.

Features:

  • Available in 12VDC and 250VDC
  • Compatible with Federal Signal UTM Tone Module
  • Produces 110dBa @ 10' (120dBa @ 1m)
  • Type 3R enclosure
  • Indoor/outdoor use
  • UL and cUL Listed

    pdfDownload the 300-250 Datasheet in PDF format



    pdfDownload the 300 SelecTone Audible Signaling Device Instruction Sheet in PDF format
