300VSC-1044SB - Federal Signal SelecTone Command Unit, rack mount

300VSC-1044SB - Federal Signal
300VSC-1044SB

Price: $2,389.92
Manufacturer SKU: 300VSC-1044SB
Manufacturer ID: 78297939117



Availability: Usually Ships in 1 to 2 Weeks
Part Number: 300VSC-1044SB
Qty:

Description

300VSC-1044SB - Federal Signal SelecTone Command Unit, rack mount

Overview:

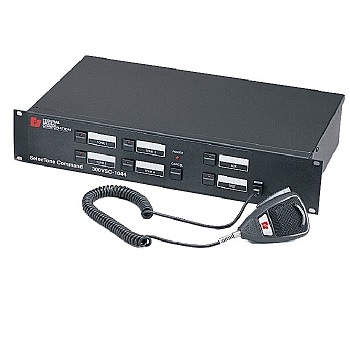

The Federal Signal Model 300VSC–1044SB SelecTone® Command Unit generates up to four tones or voice communications in a SelecTone system. The housing can be mounted in any standard 19" equipment rack. Four tones, auxiliary, test and cancel are controlled via an illuminated keypad. Voice transmission is activated by keying the optional desktop or hand–held microphone.

The Model 300VSC–1044SB is UL Listed and CSA Certified.

Select up to four plug–in tone modules, including the UTM Universal Tone Module or the TM33 Custom Tone Module.

Public address can be accessed from the optional local microphone or the remote microphone input. Audio input allows background music to be played from any 1 volt peak–to–peak audio source. Public address has the highest priority, followed by tones 1–4, remote microphone and audio.

"Test" plays tones or voice messages through the monitor speaker only. "Cancel" interrupts any tone.

External dry contact closures can be wired into the command unit for automatic remote operation of the signal system.

The 300VSC–1044SB SelecTone Command Unit is the basis for a simple, versatile general signaling system for weather warning, start and dismissal, general alarm, evacuation and paging.

Features:

  • Multi–voltage design accepts 24VDC, 120VAC or 240VAC
  • Produces four prioritized tones and public address
  • Remote microphone input
  • 19" rack mount
  • Type 1 enclosure
  • UL Listed and CSA Certified

    pdfDownload the 300VSC-1044SB Datasheet in PDF format



    pdfDownload the 300VSC-1 SelecTone Command Unit Instruction Sheet in PDF format
