AM300 - Federal Signal Speaker, 15 watts, transformer coupled

Home > Manufacturers > E - J > Federal Signal > Public Address > AudioMaster 15 watt speakers >

AM300

Price: $519.38

Manufacturer SKU: AM300
Manufacturer ID: 78297960067

Availability: Usually Ships in 1 to 2 Weeks
Part Number: AM300

Qty:

Description

AM300 - Federal Signal Speaker, 30 watts, swivel mount

Overview:

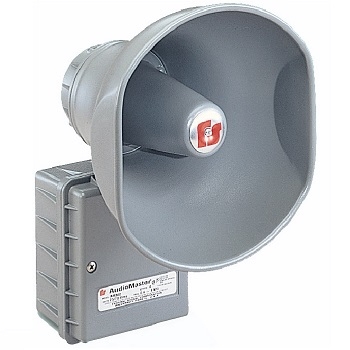

The AM300 is a rugged, transformer coupled, re-entrant speaker for use in public address or paging applications. This 15 watt speaker features a durable speaker cone and projector constructed of spun aluminum. The speaker wiring connections are enclosed in a dust- and moisture-proof, die-cast aluminum compartment. All external surfaces are sealed with a gray powder coat paint.

Two screws inserted through the back of the wiring compartment provide for simple wall mount installation. The bottom of the AM300 contains two 1/2-inch conduit openings to accommodate inbound and outbound audio wiring. The unique shape of the AM300 projector provides a 60 sound dispersion. The projector is held in position with a Teflon coated lock ring that can be rotated 180� in order to obtain the desired sound distribution.

Power handling for the AM300 is 15 watt with transformer taps of 15, 9, 3 and 1.5 watt. This unit is designed for use in 25 and 70Vrms distributed systems.

The AM300 is rated for indoor and outdoor use. This speaker is Underwriters Laboratories Listed for "Fire Protective Signaling Use". An in-line capacitor (included) provides the isolation necessary for use in supervised systems. The AM300 can be used with the AudioMaster CTS series amplifiers and the Audio Router to complete an industrial grade public address system.

Features:

Transformer coupled

25 or 70Vrms

15 watt

Re-entrant horn design

Wall mount

Type 3R enclosure

UL 1480 and CSFM Approved

pdf

Download the AM300 Datasheet in PDF format

Download the AM300 AudioMaster Public Address 15 Watt Speaker Instruction Sheet in PDF format
